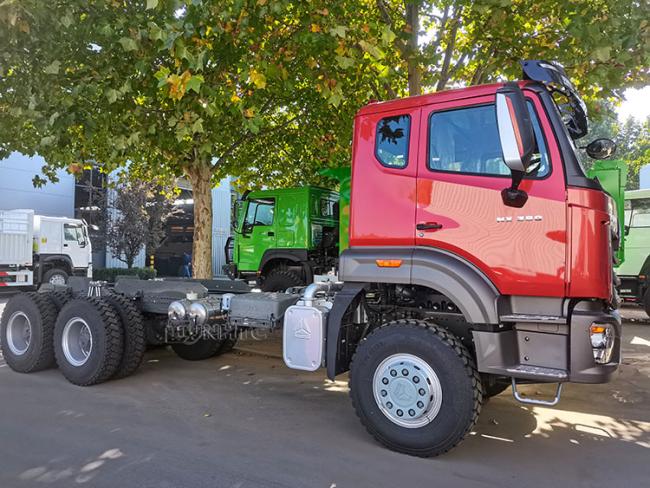

New Howo Tipper Truck Chassis 6x4 380hp 10 Wheels Dump Truck Chassis

The chassis structure of the Wo dump truck mainly consists of the engine, gearbox, bridge,

axle, axle, wheel axle, tire, braking system, etc. The engine is the power source of the dump

truck, and the gearbox is used to convert the power transmitted by the engine into the torque

required by the vehicle; The bridge is the main structure responsible for the strength and

stiffness of the vehicle; The axle shaft is a component used to connect the gearbox and the

bridge; The axle is a component that connects the front and rear axles; Wheels are used to

support the tires of a vehicle; Tires are components that provide power for starting, driving,

turning, and other aspects of a vehicle; The braking system is a component used to control

vehicle speed.

​

Howo 6*4 Dump Truck Chassis
Cabin		HW70(NO BED);HW76(SINGLE BED)
engine	Model	Wd615.62		Wd615.87		Wd615.69
	Fuel	Diesel
	Displacement	9.726L
	Emission Standard	EURII
	Power	196(266)/2200		213(290)/2200		247(336)/2200
	torque	1100/1100-1600		1160/1160-1600		1350/1100-1600
transmission	model	HW19710
	Control model	MT
Front axle		HF9 drum-type rated load of 9tons
Rear axle		St16 16tons speed ratio:3.93 4.42 4.8
Clutch		Single-plate dry diaphragm spring clutch, diameter 430(B)mm, hydraulically operating with air assistance
steering		ZF8098
Suspension		Leaf spring suspension
Fuel tank		300L
tyres		12.00R20

​

When choosing a chassis, it is generally considered based on economic benefits, such as the price of the

chassis, loading quality, overload capacity, fuel consumption per 100 kilometers, andKilometer fuel

consumption, etc. In addition, users also need to consider the following parameters of the chassis:

(1) The height above the ground of the upper plane of the chassis frame. The height above the ground of

a 6x4 chassis frame is 1050-1200. The larger the value, the higher the center of gravity of the vehicle,

The more likely it is to cause a rollover. The main factors affecting this value are tire diameter, suspension

arrangement, and main frame section height:

(2) Rear suspension of the chassis. If this value is too high, it will affect the lifting stability of the dump truck

and cause a lifting overturning accident. This value is generally between 500 and 1100 (side Except for dump

trucks:

(3) Reasonable vehicle matching and reliable use.
