China National Heavy Truck HOWO TX Tipper Truck Dump Truck 400 Horsepower 8X4 6X4 4X2

Price Negotiable
Price: USD23100-25410
MOQ: 1 UNIT
Delivery Time: 45 Work days
Brand: SINOTRUK
Product Description

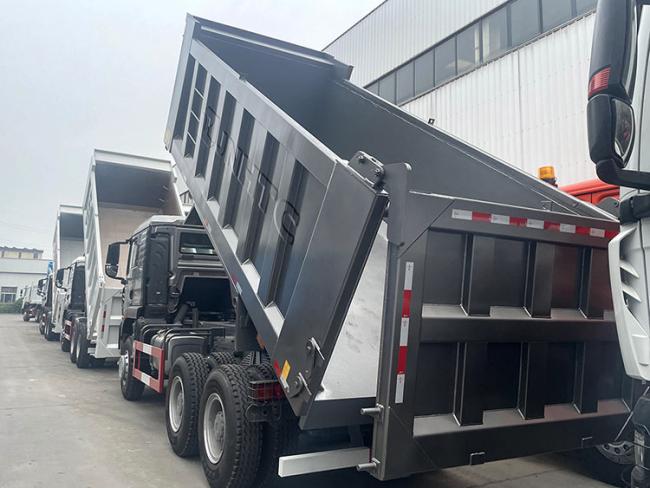

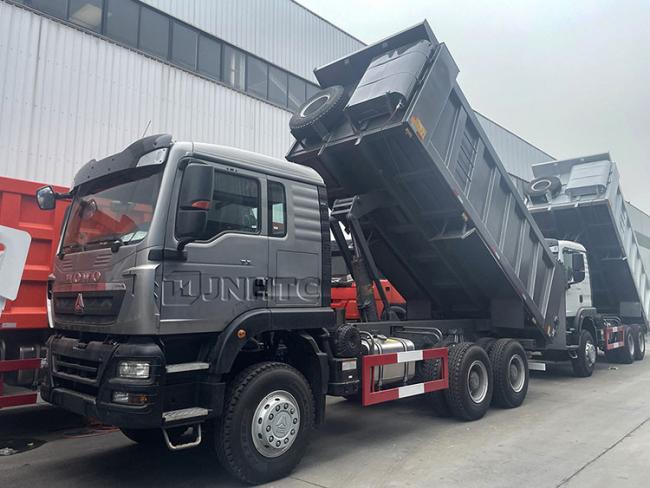

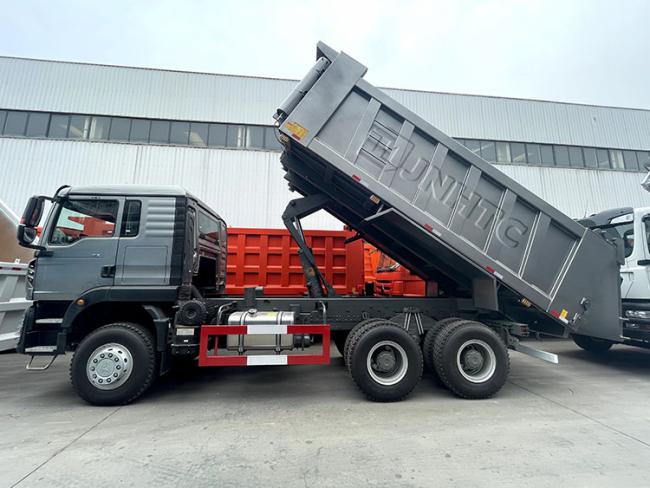

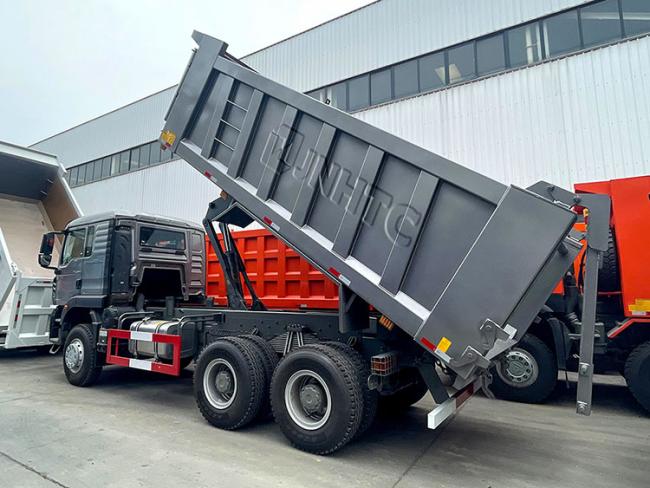

China National Heavy Truck HOWO TX Tipper Truck 400 Horsepower 8X4 6X4 4X2 Dump Truck



Model
ZZ3257V3847B1
Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs
Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake
Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper
Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000


A dump truck is a heavy-duty vehicle designed for transporting and dumping loose materials such as sand,

gravel, demolition waste, and other construction materials. These trucks are essential in the construction,

mining, and infrastructure industries due to their ability to carry large loads and unload them quickly and

efficiently.

Benefits

  1. Efficiency:

    • Quick Unloading: Hydraulic systems allow for rapid unloading of materials.
    • Large Capacity: Capable of transporting large volumes of material in one trip, reducing the
    • number of trips needed.
  2. Versatility:

    • Multiple Applications: Suitable for various tasks, from construction and mining to landscaping
    • and waste removal.
    • Different Configurations: Available in different types and sizes to meet specific job requirements.
  3. Durability:

    • Heavy-Duty Construction: Built to withstand harsh conditions and heavy use.
    • Long Lifespan: Designed for long-term use with proper maintenance.
  4. Safety:

    • Enhanced Features: Equipped with safety features to protect the operator and the surrounding
    • area.
    • Stable Operation: Engineered to provide stability even when carrying heavy loads.

Applications

  • Construction: Transporting and unloading construction materials such as gravel, sand, and asphalt.
  • Mining: Hauling extracted materials from mining sites.
  • Landscaping: Moving soil, rocks, and other landscaping materials.
  • Waste Management: Transporting demolition waste and other debris.
  • Infrastructure Projects: Used in road building, bridge construction, and other large-scale infrastructure
  • projects.

Leading Brands

  • Caterpillar: Known for durable and high-performing construction and mining equipment.
  • Volvo Trucks: Offers reliable and efficient dump trucks with advanced safety features.
  • Kenworth: Renowned for its durable and customizable dump trucks.
  • Mack Trucks: Provides powerful and reliable dump trucks for various heavy-duty applications.
  • Peterbilt: Known for high-quality, customizable dump trucks with advanced features.

Popular Models

  1. Caterpillar 797F: A large mining truck known for its durability and capacity.
  2. Volvo A40G: An articulated dump truck suitable for rough terrains and heavy loads.
  3. Kenworth T880: A versatile dump truck with advanced safety and efficiency features.
  4. Mack Granite: A durable and powerful truck designed for heavy-duty construction tasks.
  5. Peterbilt 389: A customizable dump truck with a focus on power and performance.
