China 336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel for sale

336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel

Name: 336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
Brand: Jinan Heavy Truck Import & Export Co., Ltd.

Price Negotiable

Price: USD23100-25410

MOQ: 1 UNIT

Delivery Time: 45 Work days

Brand: Howo

Product Description

HOWO Dump Truck After The First Four Eight Muck Year-round Export Of Tipper Dump Trucks

Model	ZZ3257V3847B1
Driver's Cab	HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine	Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling. Maximum output: 400PS (294kW) at 2100 rpm Maximum torque: 2060Nm at 1200-1500rpm Bore: 126mm Stroke: 155mm Displacement: 11.596L Brand: Weichai
Steering	Model: BOSCH Hydraulic steering with power assistance Left hand driving
Clutch	Φ430 Pull-type diaphragm spring clutch
Transmission	Model: HW19710, 10 forward and 2 reverse Manual type With transmission power take-off HW70 Max Torque: 1900N·M
Front Axle	Model: HF9 Drum brake system Rated loading capacity :9000kgs
Rear Axle	Model: MCP16ZG Capacity: 16000kgs Drum braking steering axle,self-adjusting arm Speed ratio:
Wheelbase	3800+1350 mm
Brake System	Type :Wabco braking system ABS 4S/4M Engine exhaust valve brake
Oil Tanker	300L aluminum alloy fuel tank
Tires	Types: 12.00R20 radial tire; 18PR 10 pcs, plus one pc spare tire
Bumper	Metal bumper

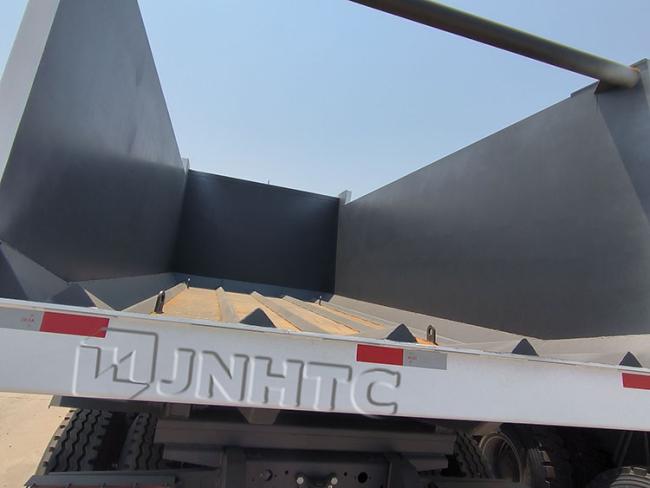

Dump body	560023001500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral fender, headlight cover.
Dimensions in mm	Front wheel track (mm): 2022 Rear wheel track (mm):1830 Overhang(front/rear) (mm):1500/1870 Overall Dimension (mm): 865025803450
Weight in kg	Dead weight (kg):13500 Gross vehicle weight (kg):25000

A dump truck, also known as a tipper truck, is a vehicle designed for transporting bulk materials such as sand, gravel, demolition waste, and more. These trucks are essential in construction, mining, and other industries where large quantities of loose material need to be moved efficiently.

Key Components and Features

Chassis: The truck's main structural framework that supports the engine, cab, and dump body.
Engine: Typically a diesel engine that provides the necessary power for the truck.
Cab: The driver’s compartment where controls and instruments are located.
Dump Body: The open-box bed that holds and dumps materials.
Hydraulic Ram: Lifts the front of the dump body to unload materials by tipping it backward.
Tailgate: The rear gate of the dump body that opens to allow materials to be discharged.

Types of Dump Trucks

Standard Dump Truck: Built on a truck chassis with a mounted dump body. It uses a hydraulic ram to lift the front of the dump body.
Articulated Dump Truck: Has a hinge between the cab and the dump body, making it suitable for rough terrain.
Transfer Dump Truck: Pulls a separate trailer with a movable cargo container, increasing load capacity.
Side Dump Truck: Tilts its dump body to the side to unload materials, which is useful for quickly spreading materials.
Superdump Truck: Features additional axles to carry more weight and increase payload capacity.
Semi Trailer End Dump Truck: A tractor-trailer combination where the trailer contains a hydraulic hoist for dumping.
