China Howo 40 Ton Dump Truck 6x4 Manual Transmission 336HP 10 Wheels Euro 2 Standard Diesel Fuel Tipper Truck for sale

Howo 40 Ton Dump Truck 6x4 Manual Transmission 336HP 10 Wheels Euro 2 Standard Diesel Fuel Tipper Truck

Name: Howo 40 Ton Dump Truck 6x4 Manual Transmission 336HP 10 Wheels Euro 2 Standard Diesel Fuel Tipper Truck
Brand: Jinan Heavy Truck Import & Export Co., Ltd.

Price Negotiable

Price: USD23100-25410

MOQ: 1 UNIT

Delivery Time: 45 Work days

Brand: Howo

Product Description

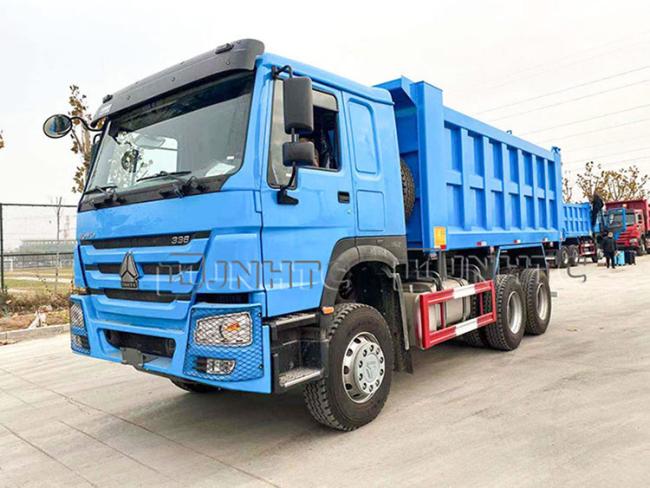

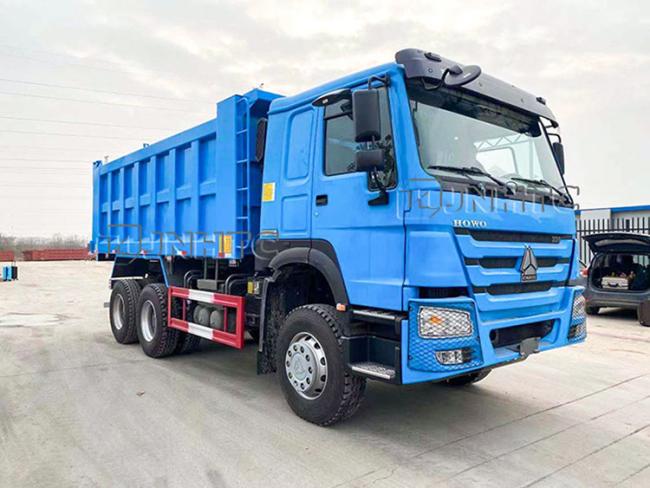

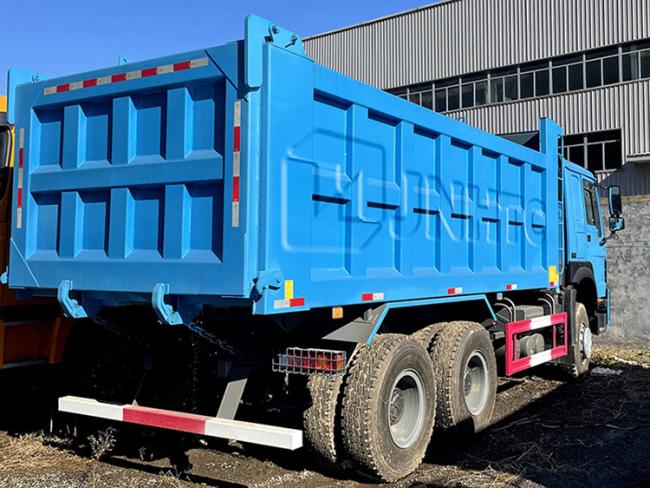

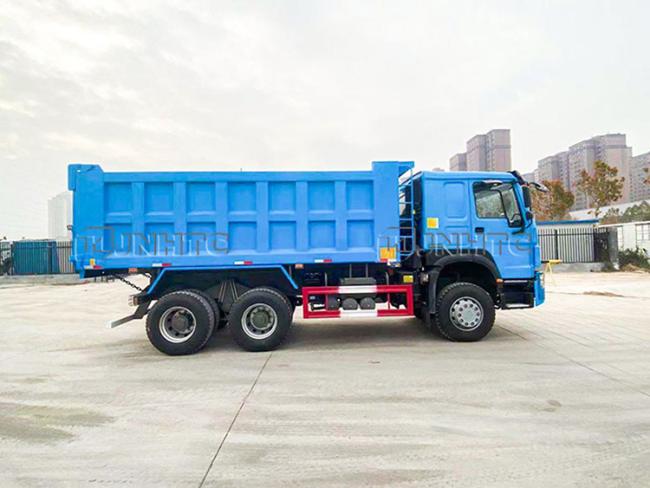

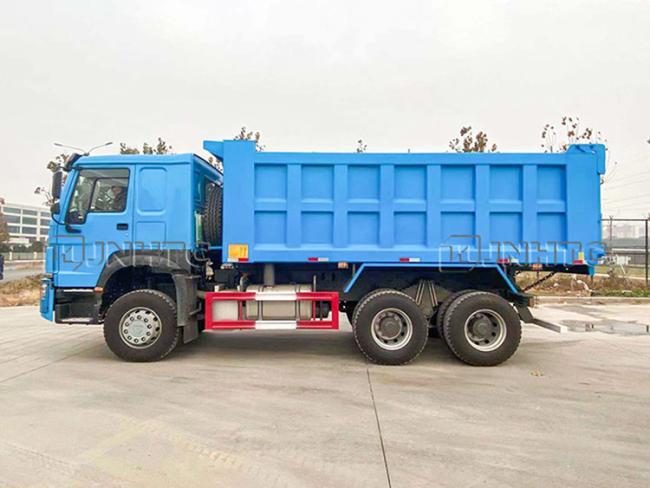

Howo 40 Ton Dump Truck 6x4 Manual Transmission 336HP 10 Wheels Euro 2 Standard Diesel Fuel Tipper Truck

Model	ZZ3257V3847B1
Driver's Cab	HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine	Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling. Maximum output: 400PS (294kW) at 2100 rpm Maximum torque: 2060Nm at 1200-1500rpm Bore: 126mm Stroke: 155mm Displacement: 11.596L Brand: Weichai
Steering	Model: BOSCH Hydraulic steering with power assistance Left hand driving
Clutch	Φ430 Pull-type diaphragm spring clutch
Transmission	Model: HW19710, 10 forward and 2 reverse Manual type With transmission power take-off HW70 Max Torque: 1900N·M
Front Axle	Model: HF9 Drum brake system Rated loading capacity :9000kgs
Rear Axle	Model: MCP16ZG Capacity: 16000kgs Drum braking steering axle,self-adjusting arm Speed ratio:
Wheelbase	3800+1350 mm
Brake System	Type :Wabco braking system ABS 4S/4M Engine exhaust valve brake
Oil Tanker	300L aluminum alloy fuel tank
Tires	Types: 12.00R20 radial tire; 18PR 10 pcs, plus one pc spare tire
Bumper	Metal bumper
Dump body	560023001500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral fender, headlight cover.
Dimensions in mm	Front wheel track (mm): 2022 Rear wheel track (mm):1830 Overhang(front/rear) (mm):1500/1870 Overall Dimension (mm): 865025803450
Weight in kg	Dead weight (kg):13500 Gross vehicle weight (kg):25000

A dump truck is a powerful and versatile vehicle designed for transporting and unloading bulk materials. Here's an in-depth look at dump trucks:

Applications

Construction: Moving earth, sand, gravel, and other materials for building projects.
Mining: Transporting minerals and waste from the mining site to processing facilities.
Landscaping: Hauling soil, mulch, and rocks for landscaping projects.
Waste Management: Transporting demolition waste and other bulk trash to disposal sites.
Road Maintenance: Delivering materials for road repair and construction.

Capacity and Size

Small Dump Trucks: Typically have a capacity of 1-5 cubic yards and are used for smaller projects.
Medium Dump Trucks: Range from 5-15 cubic yards, suitable for mid-sized construction and landscaping projects.
Large Dump Trucks: Can carry 15-30 cubic yards or more, used in large-scale mining and heavy construction.

Regulations and Safety

Weight Limits: Adherence to legal weight limits to avoid fines and damage to roads.
Maintenance: Regular maintenance of hydraulic systems, tires, and chassis to ensure safety and efficiency.
Operational Procedures: Proper training for operators to handle loading, unloading, and driving safely.
