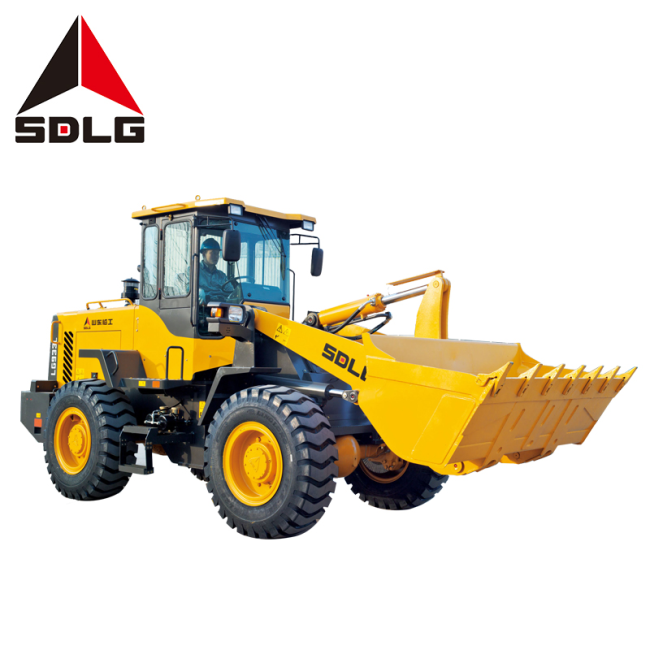

Sdlg LG933L 1.8m3 Bucket Payload 3 Ton Wheel Loader Earth Moving Machinery
Price:
Unit FOB Price 20000-30000 USD
MOQ:
1 Unit
Delivery Time:
30 Working Days
Brand:
SDLG
Product Description
Product Description
LG933L is suitable for bulk materials,with short base,high cost performance.The entire machine is of large breakout force,small turning radius,high operating efficiency,flexible to operate and is widely used in harbor,building site,aggregate plant,timber yard and etc.
Detailed Images
| Basic configuration | |
| Engine | Weichai WP6G125E23 |
| Transmission system | Fixed shaft power shift, SDLG reinforced drive axle |
| Hydraulic system | Mechanical |
| Lift arm | Standard |
| Control valve | 2-joint valve |
| Brake system | Dual brake pedal |
| Cab | Standard |
| Heating & Cooling | Heater |
| Other configuration | Engine tachometer |
| Detailed configuration | |
| Overall dimension | |
| L*W*H | 6970*2520*3240mm |
| Wheel base | 2700mm |
| Min. ground clearance | 375mm |
| Max. dumping height | 2950mm |
| Lifting height | 3790mm |
| Dumping distance | 1050mm |
| Dumping angle | 45° |
| wheel tread | 1865mm |
| steering angle | 36° |
| horizontal crossing radius | 5945mm |
| Min. turning radius | 5120mm |
| Overall parameters | |
| Backet capacity | 1.8m3(1.5-3.0) |
| Rated load | 3000kg |
| operating weight | 10110kg |
| Max. tractive force | 96kN |
| Max. breakout force | 96kN |
| Tipping load | 60kN |
| Engine | |
| Model | WP6G125E23 |
| Type | watercooled, four-stroke, Inline |
| Rated power | 92kW |
| Rated speed | 2300r/min |
| Engine displacement | 6750ml |
| Max. torque | 500N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 215g/kw.h |
| Transmission system | |
| Torgue converter | single-stage three-element hydraulic torque converter |
| Transmission type | Fixed shaft power shift |
| Gears | Forward 4 reverse 2 |
| Hydraulic system of working device | |
| Type | Mechanical control |
| total time | 9.0s |
| Brake system | |
| Service brake type | Air over hydraulic disc type |
| Parking brake type | Manual, caliper disc type |
| Steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 14 Mpa |
| Fill capacity | |
| Fuel | 140L |
| Hydraulic oil | 130L |
| Engine | 14L |
| Transmission | 45L |
| Drive axle | Forward 18L+ reverse 18L |
| Braking system | 4L |
Packing&Shipping![Sdlg LG933L Earth Moving Machinery 1.8m3 Bucket 3 Ton Payload Wheel Loader]()
FAQ
1,Are you original manufacture?
yes,we SDLG are an official leading manufacture in construction machinery in China.
2,What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3,What about the delivery time?
7-30 days after receving the deposit.
4,what about the warranty time?
12 months after shipment or 2000 working hours.
yes,we SDLG are an official leading manufacture in construction machinery in China.
2,What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3,What about the delivery time?
7-30 days after receving the deposit.
4,what about the warranty time?
12 months after shipment or 2000 working hours.
