BR607632 607632W HJ607632 607632JQ P0 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Needle Roller Bearing

Production introduction

BR607632Needle roller bearing products are widely used in miniaturized mechanical products, which can effectively improve the quality and performance of mechanical products. In summary,
(In ZH bearing factory, you can find the price and quality you want)

the single use of needle roller bearing products not only have a more compact radial structure, but also the load strength per unit area is far more than other bearing products,

and this excellent quality and stable performance of needle roller bearing products also have the advantage of extremely long service life, the above are the main advantages of this unique needle roller bearing with special application of radial structure.




Basic parameters

Needle bearing 4

series

BR 607632


model


Main size/mm

95.250(3.75)

Fw

120.650 (4.75)

D.

50.800 (2)

C

weight

1 290



Mass/g



Standard installation size/mm

111.4


Da/Max



2.5



ras max



Other parameters

169 000



Basic dynamic load rating C/N

342 000



Basic rated static load Co/N

4 000



Allowable speed speed(2)/rpm

Needle roller bearings BR 607632

Bearing number : BR 607632

Size (mm) : 95.25x120.65x50.8

Brand : IKO

Bore Diameter (mm) : 95,25

Outer Diameter (mm) : 120,65

Width (mm) : 50,8

Bearing dimensions and specification in IKO catalogue:

Fw - 95,25 mm

D - 120,65 mm

C - 50,8 mm

Da max. - 111,4 mm

ra max. - 2,5 mm

Weight - 1,29 Kg

Basic dynamic load rating (C) - 169 kN

Basic static load rating (C0) - 342 kN

Limiting speed - 4 000 r/min

Cooperation allows ants to hunt the giant, collocation makes the parts more coordinated, here are the parts that can be matched with BR607632

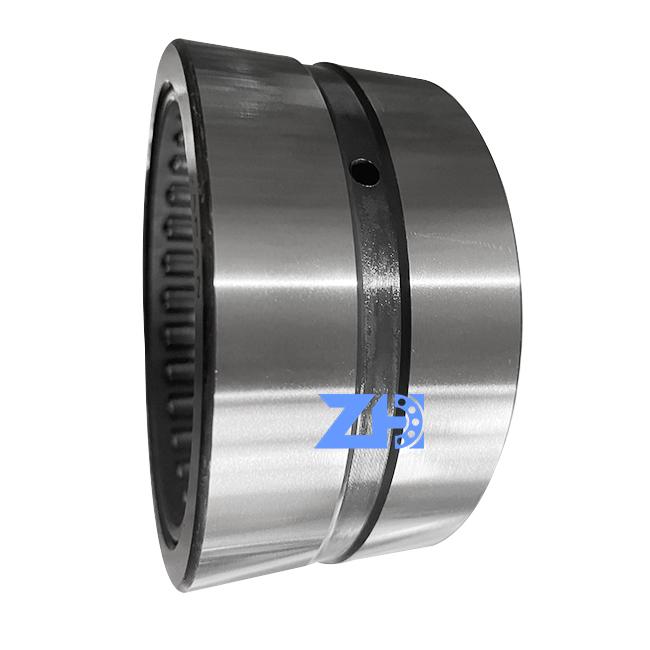

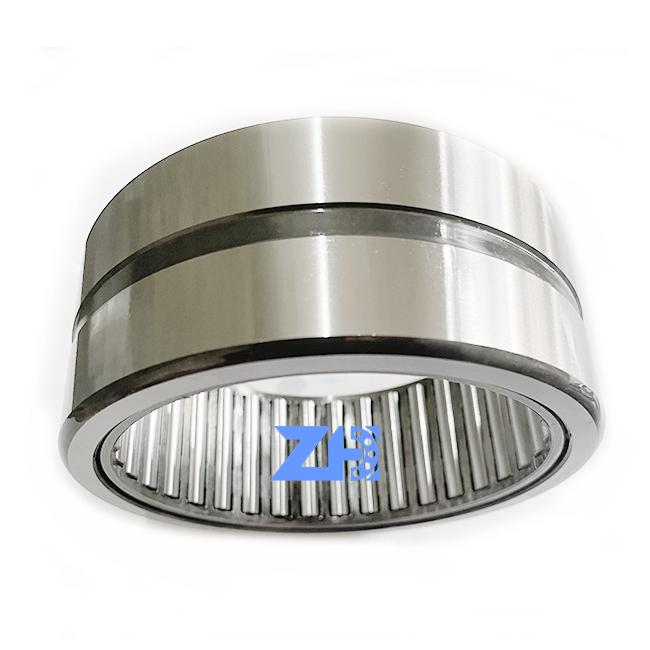

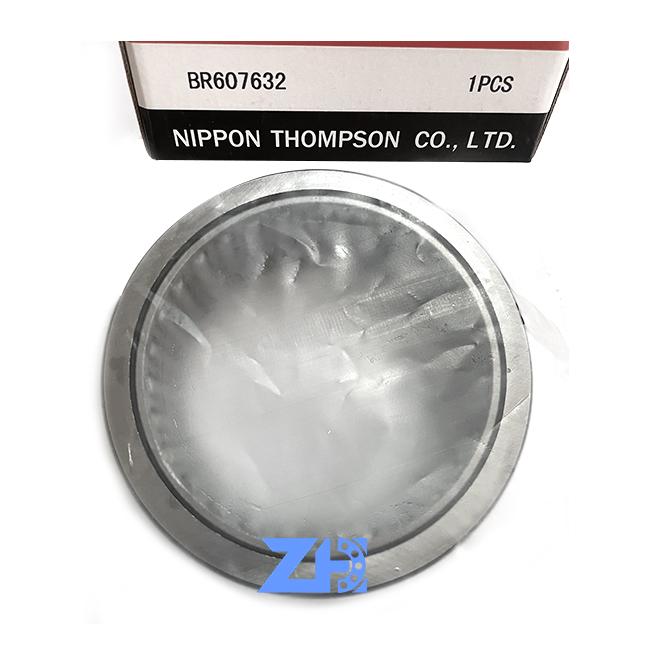

Picture show
