Good quality 22324CC 22324CA 22324MB 22324MA 22324 Spherical Roller Bearing Can be used in automotive bearings

Good quality 22324CC 22324CA 22324MB 22324MA 22324 Spherical Roller Bearing Can be used in automotive bearings
Product introduction
2232CC Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. (Here you can find the products  price you need)

sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life. The performance of these sphericals is

achieved through the use of very high quality raw materials and optimized rolling element geometry. The unique design also leads to: Reduced friction torque (as much as 30% less),

offering lower operating temperature,
with lower power and lubricant consumption. Appreciably increased operating speed,


• Accommodate misalignment​
• High load carrying capacity
• Low friction and long service life​
• Increased wear resistance​
• Suitable only for very low speed

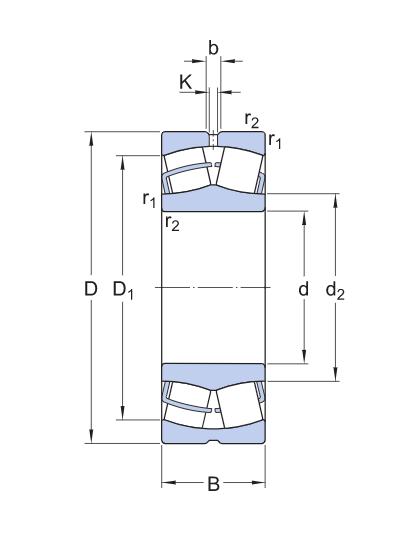

  Dimensions

  d	120 mm	Bore diameter
  D	260 mm	Outside diameter
  B	86 mm	Width
  d2	≈152 mm	Shoulder diameter of inner ring
  D1	≈216 mm	Shoulder/recess diameter of outer ring
  b	13.9 mm	Width of lubrication groove
  K	7.5 mm	Diameter of lubrication hole
  r1,2	min.3 mm	Chamfer dimension

  Abutment dimensions

  da	min.134 mm	Diameter of shaft abutment
  Da	max.246 mm	Diameter of housing abutment
  ra	max.2.5 mm	Radius of fillet



  Calculation data

  Basic static load rating	C0	1 120 kN
  Limiting speed		20 r/min
  Calculation factor	Y0	1.8

•

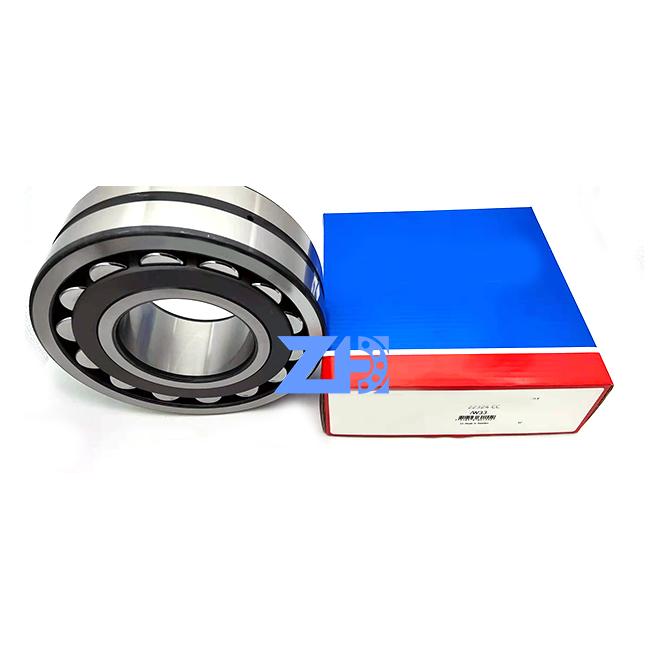

• Picture show
