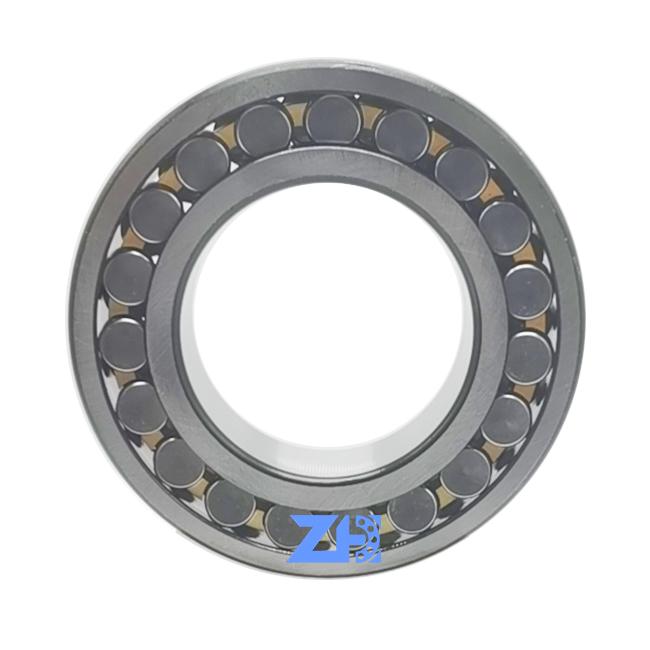

90*160*40mm 22218CA 22218W33 22218C3 Spherical Roller Bearing CHROME STEEL Material
90*160*40mm 22218CA 22218W33 22218ZN Spherical Roller Bearing CHROME STEEL Material
Product introduction(Good steel comes from tempered, good bearings come from ZH 19 experience)
22218CA They're great for any application where you need reliability and toughness—not really a lot of other options out there can compete with spherical's performance. With reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption, these bearings are ready to go the extra mile for your machine or project. This exceptional performance of these bearings has led them to be used in some of the largest and most challenging rotating equipment in the world.

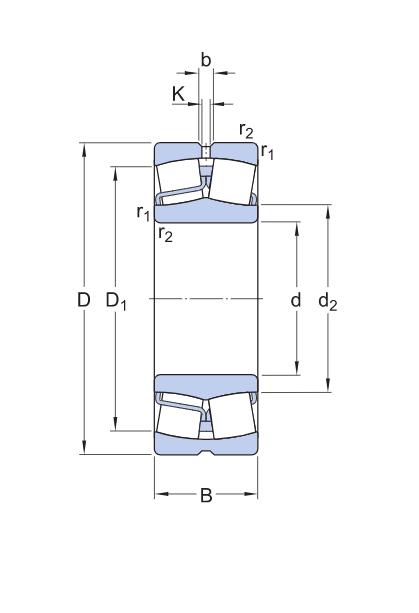

Dimensions
| d |
90 mm
|
Bore diameter |
|---|---|---|
| D |
160 mm
|
Outside diameter |
| B |
40 mm
|
Width |
| d2 |
≈106 mm
|
Shoulder diameter of inner ring |
| D1 |
≈141 mm
|
Shoulder/recess diameter of outer ring |
| b |
6 mm
|
Width of lubrication groove |
| K |
3 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2 mm
|
Chamfer dimension |

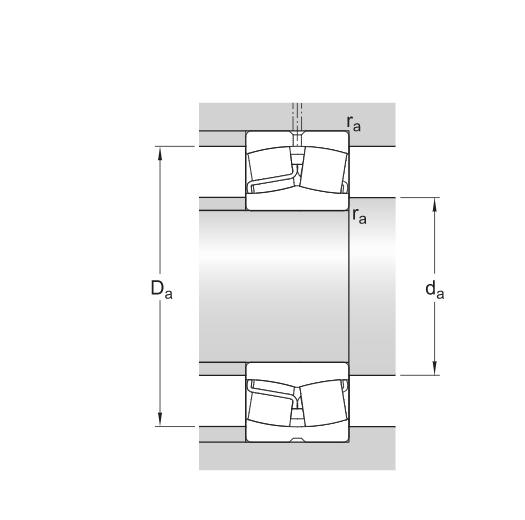

Abutment dimensions
| da |
min.101 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.149 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
Calculation data
| Basic dynamic load rating | C |
331 kN
|
|---|---|---|
| Basic static load rating | C0 |
375 kN
|
| Fatigue load limit | Pu |
39 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
5 300 r/min
|
|
| Limiting value | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
Product Properties
- BoreC - Cylindrical Bore
- Lubrication EnhancementW33 - Lubrication Groove and 3 Holes
- SealNo Seal
- Cage TypeM - Brass Cage
- Radial Internal PlayC3 Internal Play (Higher than Cn)
- PrecisionStandard Precision
- Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
- Vibrating Screen ExecutionNon Vibrating Screen Execution
Suffix description

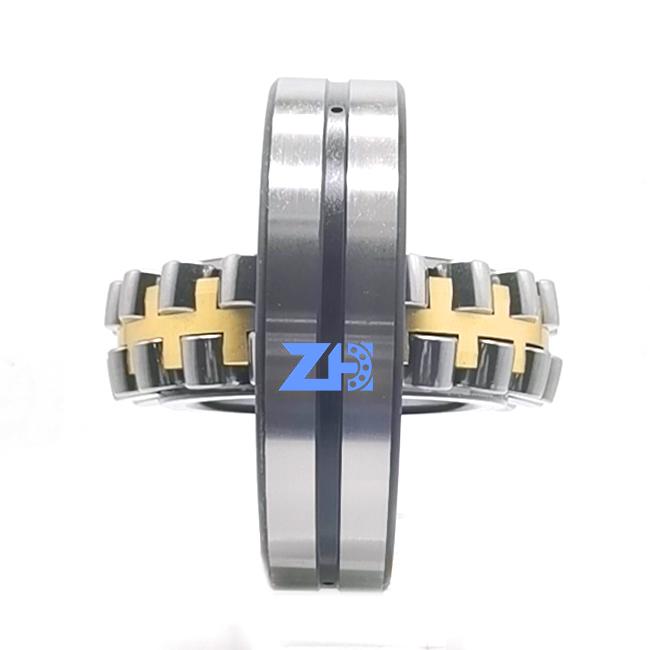

- CABearings With Symmetrical Rollers And Retaining Ribs. The Cage Is A One-Piece, Double Pronged Machined Cage Of Brass
- C3Internal Clearance Larger Than Normal
- W33Lubrication Groove And Three Holes In Bearing Outer Ring
