22328MB 22328CC 22328ECK P0 P6 P5 P4 Quality ank CHROME STEEL Spherical Roller Bearing
22328MB 22328CC 22328ECK P0 P6 P5 P4 Quality ank CHROME STEEL Spherical Roller Bearing
22328MB An aligning roller bearing is a bearing with a drum roller assembled between an inner ring with two raceways and an outer ring with spherical raceways. Aligning roller bearings have two rows of rollers, which mainly bear a diameter load, and can also bear axial loads in any direction. It has high radial load capacity, especially suitable for heavy loads or vibration loads, but cannot withstand pure axial loads
![]()
![]()
Dimensions
| d |
140 mm
|
Bore diameter |
|---|---|---|
| D |
300 mm
|
Outside diameter |
| B |
102 mm
|
Width |
| d2 |
≈175 mm
|
Shoulder diameter of inner ring |
| D1 |
≈247 mm
|
Shoulder/recess diameter of outer ring |
| b |
16.7 mm
|
Width of lubrication groove |
| K |
9 mm
|
Diameter of lubrication hole |
| r1,2 |
min.4 mm
|
Chamfer dimension |
Abutment dimensions
| da |
min.157 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.283 mm
|
Diameter of housing abutment |
| ra |
max.3 mm
|
Radius of fillet |
Calculation data
| Basic dynamic load rating | C |
1 357 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 560 kN
|
| Fatigue load limit | Pu |
132 kN
|
| Reference speed |
1 700 r/min
|
|
| Limiting speed |
2 200 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| 30312D | 30314D=250 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | KMF125-PC200-7 |
| 30314D | KMF41-PC60-7 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | NUP309=180 |
| NUP309 | KMF90-PC200-6 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP2207=140 | |
| JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP2206=130 | |
| JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | NUP309=180 | |
| JMF151 | GM38VB | M2X146 | T7FC060 | 30312 | NUP309 | ||
| JMF195 | JMV-53/31 | HMT36FA | M2X150 | NUP207 | 30312D | NUP310 | |
| JMF250 | MAG85 | HMGC32 | M2X170 | 6213 | 30312D | NUP2310 | |
| M2X55 | MAG120 | HMGF35 | M2X210 | NUP308 | NUP308 | NUP2212 | |
| M2X63 | MAG150 | HMGF36 | SG20 | NUP2207 | DNB50/60 | NUP206 | |
| KMF125-PC200-8 | NUP206E | HMGC48 | HMS072 | 6305 | NUP308 | NUP308=140 | |
| KMF160-PC360-7 | 15578 | NUP309 | AP5S67 | NUP2211=250 | 30309D=110 | NUP309 | |
| MSG-27P | NUP306 | T7FC055 | 11749/11710 | NUP207 | NUP207 | NUP206 | |
| AP5S53 | NUP307 | T7FC055 | NUP310 | NUP307 | 30309D | 6305M | |
| M5X130 | NUP205E | NUP306 | NUP208E | NUP307 | 30312D | 4T-30307 |

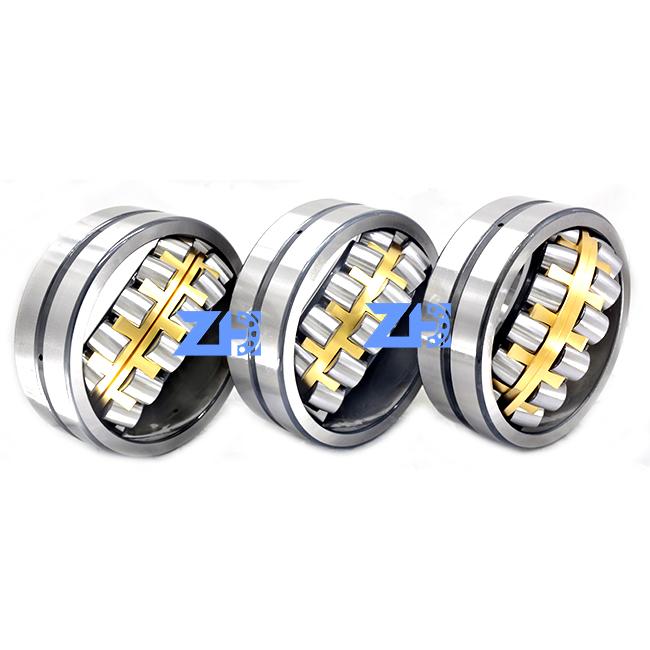

Picture show
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
