Oil and Gas Drilling Submersible Slurry Pump , Electric Submersible Sewage Pump

Top Quality Drilling Fluids Submersible Slurry Pump Used in Oil and Gas Drilling

Introduction

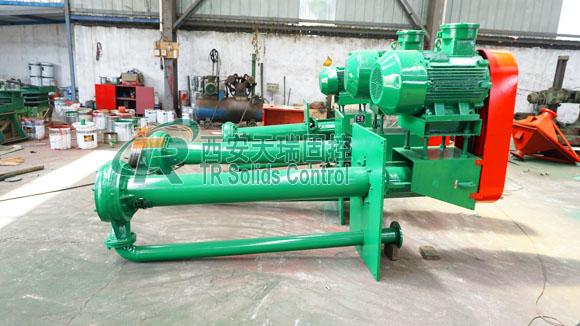

Submersible slurry pump is a kind of vertical single stage & suction cantilever centrifugal pump, it is also called vertical sand pump. Our YZ series submersible slurry pump mainly supplies mud for shale shaker and decanter centrifuge from the mud pit. Its structure is single sucking cantilever type. It uses bearing seat, supporting seat and pipe to connect the hydraulic parts of pump, and liquid is discharged from the hydraulic hose assembly. Pump’s impeller is semi-open type, and it’s equipped with mixing bladed in the stretch part of impeller inlet.

Our submersible slurry pump can transport large particles of solid particles. The standard length of pump inserting liquid is 1.3 meter, and it can be equipped with a suction tube if required. The drive is mounted on the motor base by a vertical motor and connected to the pump with a coupling. The pump rotates clockwise from the direction of the motor.

Application

Our YZ series submersible slurry pump is widely used in oil & gas drilling, trenchless HDD, city bored piling, tunnelling construction, Coal Bed Gas Solids Control System, Water Drilling, environment protection, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems, coal washing, municipal projects, thermal power generation, mining, paper making, cement plant etc.

Features of TR Submersible Slurry Pump

1. Impeller is semi-open type.
2. No bearing between impeller and pump for less repair cost.
3. Submerge length can be customizable.
4. Compact design covers small space.
5. Enough rigidity in submerged parts of the shaft.
6. Convey the medium containing solid particles with larger density.
7. Vertical motor is installed on motor base, connecting the pump by coupling.

Technical Data of YZ Series Submersible Slurry Pump

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
