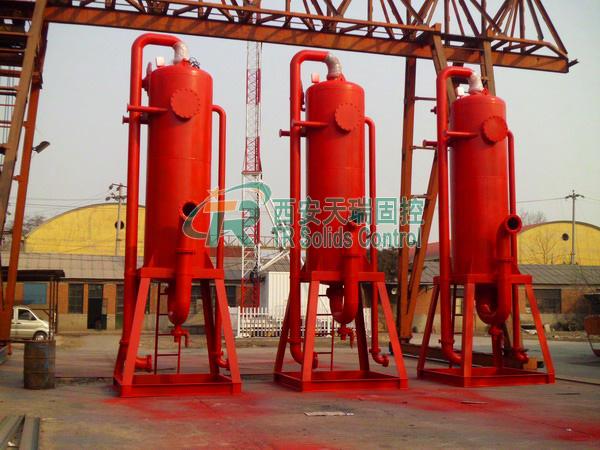

1200mm Drilling Solids Fluids Mud Gas Separator / High Capacity Gas Buster Oilfield

1200 mm Drilling Solids Fluids Mud Gas Separator / Oilfield Liquid Gas Separator

Introduction

Mud gas separator is a special oil drilling equipment to handle the invaded gas, it is also an effective equipment to handle the tail gas and invaded natural gas in oil field, refinery and natural gas collecting and distributing station. It can ignite the harmful invaded gas to eliminate the hazards to the environment, also it is a security environmental protection equipment. This equipment can match with flare ignition device, and is usually used in oil & gas drilling and CBM drilling project.

Drilling fluid with gas goes into the separator and drops along the inner wall. With collision to increase the contact area, it flows downward and becomes a turbulent state which makes gas separate from mud. The free gas goes through the top of vessel and is discharged from the gas outlet. The length of gas output pipe can be determined at the spot. The drilling fluid without gas flows into the following solids control equipment.

Application

Our TRZYQ series Mud Gas Separator is mainly used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Currently it is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, environment protection, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, mining, Oil Mud Seperation, Water Drilling etc.

Advantages of TRZYQ Series Mud Gas Separator

1. Efficient degassing performance.
2. Separated gas is carried by discharge lines to safe area for combustion.
3. Skid-Mounted and Trailer Transportable. Simplifying transport, spotting and installation.
4. Versatile Configuration. Flow line adjustments can be raised or lowered to minimize piping.
5. Separates free gas accumulations especially toxic gases from drilling mud system.
6. Fail-safe gas delivery can be controlled by a back-pressure manifold valve in the flare line.

Technical Data of TRZYQ Series Mud Gas Separator





Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
