0.25-0.4Mpa Oilfield Mud Cleaning Equipment Including Desander and Desilter
API Standard Oilfield Drilling Mud Cleaner , Including Desander , Desilter and Shale Shaker
Introduction

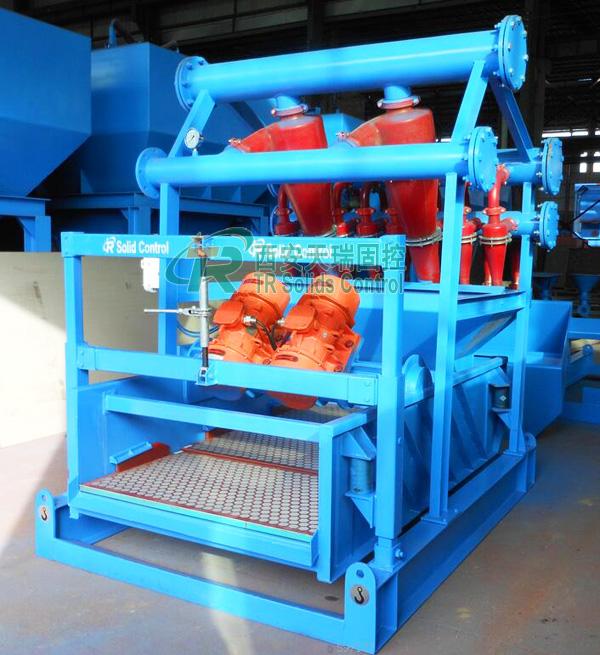

Mud Cleaner is the second phase or the third phase solids control equipment, and it is a combination of desander, desilter and underneath shale shaker with the features of compact structure, small footprint and great efficiency. It is an ideal equipment as the second or the third phase solids control equipment.
Designed to handle the entire circulating volume, TRQJ series mud cleaners are effective on both weighted and unweighted drilling-fluid systems in removing and drying solids while retaining the expensive liquid. The hydrocyclones(desanders and desilters) make the primary separation with underflow directed onto the shaker’s vibrating screen. Used correctly, the drilling mud cleaner lower both drilling-fluid and disposal costs.
Advantages of TRQJ Series Mud Cleaner
- Screen box adopt high manganese alloy steel with high strength, long screen box lifespan.
- Desander & desilter & underflow shale shaker 3 in one unit mud cleaner for compact design and small volume.
- High G vibration intensity(adjustable) can meet high viscosity and high gravity separation.
- Plate tensioning fixed or wedge fixed for shaker screen.
- High-chromium iron lined with polyurethane or overall polyurethane hydrocyclone material prolong usage life.
- International brand vibration motor, Martin or OLI motor.
- Overall heat treatment for complete screen box, heavy antiseptic coating on surface, ensure long service life of shale shaker.
- International brand Schneider or SIEMENS electronic components.
Technical Data of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Application
TRQJ series mud cleaner is widely used in trenchless HDD, city bored piling, oil & gas drilling, Drilling Waste Management, tunneling construction, environment protection, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, mining, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
