Product Introduction

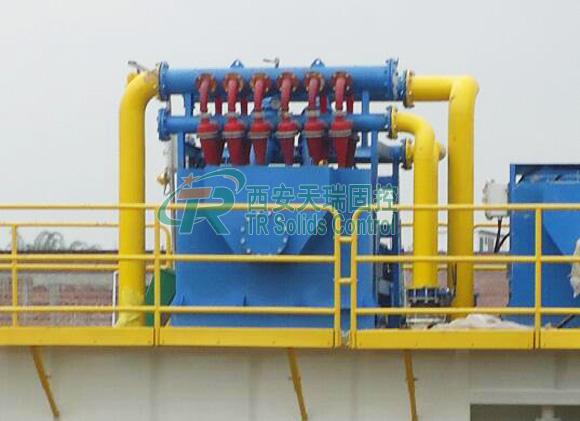

TRQJ series Mud cleaner is combined with desander, desilter and underflow shale shaker. It has higher cleaning function compared with separate desander and desilter. In addition to reasonable design process, it equals another shale shaker. TR mud cleaner is an ideal device in your solids control system.
TR Solids Control is a lead and professional manufacturer of mud cleaner in China. Our drilling mud cleaner is a normal model in our company. We can design customized cost-effective mud cleaner for customers special needs. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.
Advantages of TRQJ Series Mud Cleaner
- Compact design with small footprint, with top feed and weir feed two option.
- Mechanical Deck is adjustable during operation, reliable performance.
- Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.
- Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.
- Hook-strip shaker screens for fast screens changing with screens.
- Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.
Technical Data of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Main Application
TR mud cleaner is widely used in trenchless HDD, city bored piling, tunneling construction, Drilling Waste Management, oil & gas drilling, environment protection, mining, Coal Bed Gas Solids Control System, Oil Mud Seperation, Oil Sludge Dewatering Systems, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
