Small Size Mud Cleaning Equipment for Drilling Mud Treatment 0.25-0.4Mpa Working Pressure
High Quality Small Size Long Service Life Mud Cleaner for Drilling Mud Treatment
Introduction

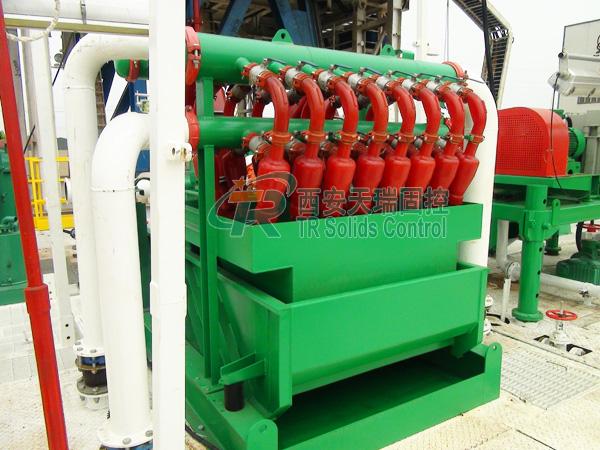

Mud Cleaner is the second stage or the third stage solids control equipment, and it consists of desander, desilter and underneath shale shaker, so it can be called Desander and Desilter. With compact structure, small footprint and high efficiencty, it is the perfect choice as the second or the third phase solids control equipments.
As the famous Mud Cleaner manufacturer and exporter in China, TR Solids Control design and manufacture the TRQJ Mud Cleaner and customized mud cleaner according to customers’ request.
Advantages of TRQJ Series Mud Cleaner
- Mechanical Deck is adjustable during operation, reliable performance.
- Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.
- Hook-strip shaker screens for fast screens changing with screens.
- Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.
- Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.
- Compact design with small footprint, with top feed and weir feed two option.
Technical Data of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Application
TR mud cleaner is widely used in Drilling Waste Management, trenchless HDD, city bored piling, oil & gas drilling, tunneling construction, Coal Bed Gas Solids Control System, environment protection, mining, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
