1630KG Oilfield Solids Control Shale Shaker , 2.94KW Motor Powered Shaker
1630KG Oilfield Solids Control Shale Shaker , 2.94KW Motor Powered Shaker
Brief Introduction

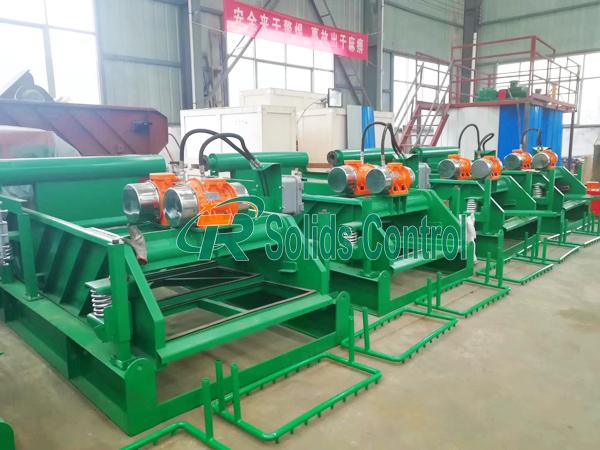

Our shale shaker is mainly used to remove large amounts of solid particles from drilling mud, such as sand and gravel. It is also the most important solids control equipment in oil drilling mud recovery system. TR shale shaker is your best choice. Its main application is in oil and gas drilling, HDD trenchless industry and other mud recycling system etc.
Mud shale shaker is the first phase solids control equipment in oil drilling mud solids control system and the important equipment in the mud recycling system as well. Generally, there are single shale shaker, duplex shale shaker and triple shale shaker. TR Solids Control can provide the shale shaker in different treatment capacity with customized service as per clients’requirement.
Design features of TR mud shale shaker
- Able to process heavier solids loads.
- Hi-speed conveyance of cuttings.
- AWD device is adjustable from -1°~5°.
- Higher processing capacity.
- Enhances cuttings processing volume.
- Shale shaker feeder can be weir feeder or box feeder.
- Single side shale shaker screens tension system to easily change the screens.
- G-forces linear motion up to 7.1 G (adjustable depending on the situation).
Technical Parameters of TR Shale Shaker
| (Model) | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. | |||
TR Solids Control offer the world with drilling mud shale shaker. We are an exporter of drilling fluid shale shaker for Indian, Russian,middle east.etc.We manufacture and design linear motion shale shaker, BEM shale shaker, drying shaker. We supplied to Oilfield Company of the Turkey Venezuela, Indonesia, Russia, the United Arab Emirates, Egypt etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
