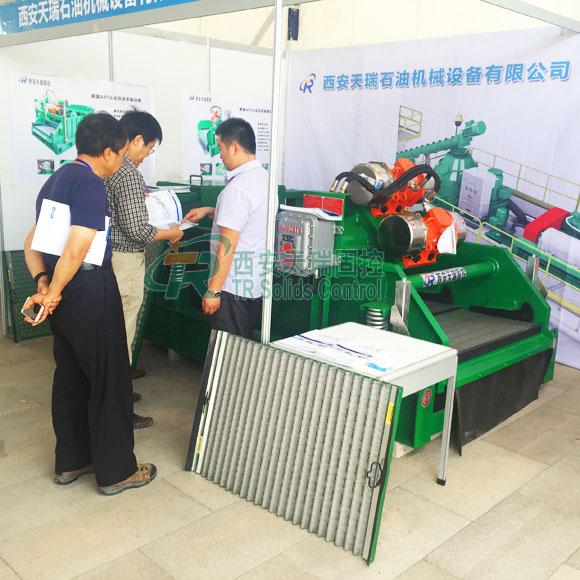

High G Force 3000W Linear Motion Shale Shaker for Oil and Gas Drilling
High G Force 3000W Linear Motion Shale Shaker for Oil and Gas Drilling
Main Introduction
Mud shale shaker is the first phase solids control equipment in drilling fluids processing system. TR Solids Control can design both double shakers and triplicate shale shaker according to users’ special demands. We also supply relevant connecting manifold. Meanwhile, our shaker can be used as underflow vibrating screen of mud cleaner. TR mud shale shaker has advantages of high vibration intensity, large screening area, adjustable screen angle, compact structure, high performance and cost-effective.
TRZS Series Linear Motion Shale Shaker is especially effective while drilling top-hole sections where heavy and high-volume solids are usually encountered. In these intervals, shakers may generate powerful G-forces and its effective vibrating motion can quickly remove the dense solids from screens and particles from wells.
Characterstics of our mud shale shaker
- Shale shaker feeder can be weir feeder or box feeder.
- Able to process heavier solids loads.
- Enhances cuttings processing volume.
- Higher processing capacity.
- AWD device is adjustable from -1°~5°.
- Single side shale shaker screens tension system to easily change the screens.
- G-forces linear motion up to 7.4 G (adjustable depending on the situation).
- Hi-speed conveyance of cuttings.
Technical Parameters of TR Shale Shaker
| (Model) | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark |
Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. |
|||
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
