Api Standard Drill Spare Parts Hydraulic Power Tongs 1450 × 760 × 740mm
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
Within 8 days after deposit
Brand:
TR Solids Control
Product Description
Product Description

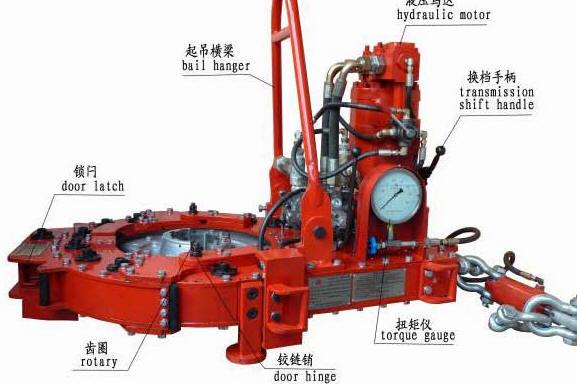

Hydraulic Power Tong is also called the Drill Pipe Power Tong, Our ZQ series drill pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and workover operations. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment
Technical Data
| Model | TQ178-16 | TQ178-16Y | TQ340-35 | TQ340-35Y | TQ356-55 | TQ356-55Y | TQ508-70Y | TQ340-85Y | ||
| Size range | mm | 101.6～178 | 101.6～178 | 114.3～340 | 114.3～340 | 114.3～356 | 114.3～356 | 114.3～340 | 114.3～340 | |
| in | 4～7 | 4～7 | 41/2～133/8 | 41/2～133/8 | 41/2～14 | 41/2～14 | 95/8～20 | 41/2～133/8 | ||
| Max. Pressure | MPa | 18 | 16 | 18 | 20 | 16.6 | 20 | 20 | 18 | |
| psi | 2610 | 2320 | 2610 | 2900 | 2400 | 2900 | 2900 | 2610 | ||
| Flow Working | L/min | 110～160 | 110～160 | 110～160 | 110～170 | 110～140 | 110～170 | 110～170 | 110～170 | |
| gpm | 29.3～42.7 | 29.3～42.7 | 29.3～42.7 | 29.3～45.4 | 29.3～37.3 | 29.3～45.4 | 29.3～45.4 | 29.3～45.4 | ||
| Air pressure | MPa | 0.5～0.9 | — | 0.5～0.9 | — | 0.5～0.9 | — | — | — | |
| psi | 72～130 | 72～130 | 72～130 | |||||||
| Max. torque |
Hi. gear | kN.m | 2.4～3 | 2.4～3 | 2.5～3 | 3.5～6 | 3.8～4.2 | 7 | 8.4～10.7 | 12.5～14 |
| ft.lbf | 1770～2210 | 1770～2210 | 1844～2210 | 2580～4425 | 2800～3100 | 5160 | 6190～7890 | 9220～10325 | ||
| Mid.gear | kN.m | — | — | 6.0～7.5 | — | — | — | — | — | |
| ft.lbf | 4425～5530 | |||||||||
| Low gear | kN.m | 14.5～17.5 | 16～19 | 32～40 | 22～37 | 53～58 | 57 | 48.9～70.5 | 85～90 | |
| ft.lbf | 10694～12900 | 11060～13270 | 23600～29500 | 16225～27285 | 39080～42775 | 42030 | 37244～52000 | 62690～66375 | ||
| Speed | Hi. gear | rpm | 54～79 | 50～72 | 60～86 | 50～90 | 56～70 | 39.4～60.9 | 26～43.6 | 30～45 |
| Mid.gear | rpm | — | — | 21～30 | — | — | — | — | — | |
| Low gear | rpm | 9～13.1 | 9～13 | 3.6～5.3 | 8～14 | 4～5 | 4.8～7.4 | 4～6.6 | 3.2～5 | |
| Lifting distance | mm | — | — | — | 622 | — | 615 | 622 | 622 | |
| in | 24.5 | 24.2 | 24.5 | 24.5 | ||||||
| Size | mm | 1450×760 ×740 |
1500×760 ×800 |
1580×900 ×880 |
1580×900 ×1060 |
1770×960 ×850 |
1770×960 ×780 |
2080×1280 ×760 |
1995×1150 ×680 |
|
| in | 57×30 ×29.1 |
59×30 ×34.6 |
62.2×35.4 ×34.6 |
62.2×35.4 ×34.6 |
69.7×37.8 ×33.5 |
69.7×37.8 ×30.7 |
82×50.4 ×30 |
78.5×45.3 ×26.8 |
||
| Weight | kg | 580 | 560 | 780 | 760 | 1150 | 1100 | 1550 | 1700 | |
| lb | 1280 | 1230 | 1720 | 1670 | 2530 | 2420 | 3410 | 3740 | ||
