Wearing Resistance Desilter Hydrocyclone With Heavy Anti Corrosion Painting

API Standard Desilter Hydrocyclone with High Quality / Desilter Hydrocyclone for Sale

Introduction

Hydrocyclone is also called cyclone separator. Hydrocyclones include hydrocyclone desander(10 in. cone) and hydrocyclone desilter(4 in. cone), which used to separate sand and silt from the drilling fluid. A hydrocyclone has two exits on the axis: the smaller on the bottom (underflow or reject) and larger at the top (overflow or accept). The underflow is generally the denser or thicker fraction, while the overflow is the lighter or more fluid fraction.

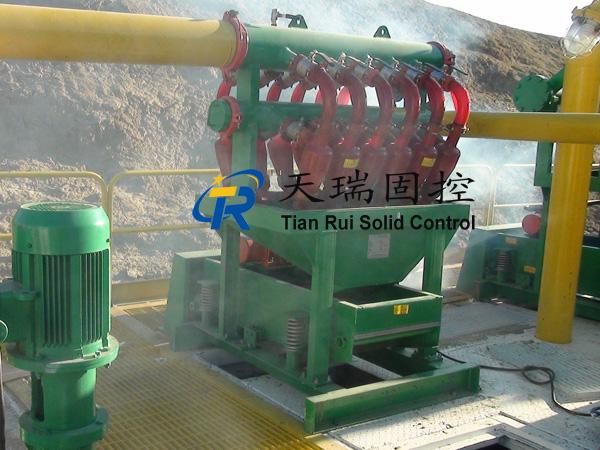

Drilling Desilter is the third important solids control equipment in drilling mud cleaning system. It improves the performance of drilling slurry, and can work together with desander cleaner. Commonly used cyclone is ”4 or 5”, which separates size of 15-47μm solids particles out from drilling fluids. Mud desilter is also called Hydrocyclone Desilter on the basis of clients’ handling ability. At present TRCN series desilter is widely applied to coal bed methane drilling, oil & gas drilling, bored piling, tunnel, horizontal directional drilling and other trenchless project.

Features of TRCN series desilter

1. Painting: Heavy anti-corrosion paint.
2. Heat treatment on entire deck.
3. Inlet and outlet adopt fast joint connection.
4. High strength compound rubber material used to reduce shocking.
5. International famous brand vibration motor with Martin or OLI.
6. Electrinic control system from famous brand explosion-proof eletronic switch.
7. Cyclones with high wearing-resisting polyurethane and high-chromium iron.

Technical Data of Our Mud Desilter

Application

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
