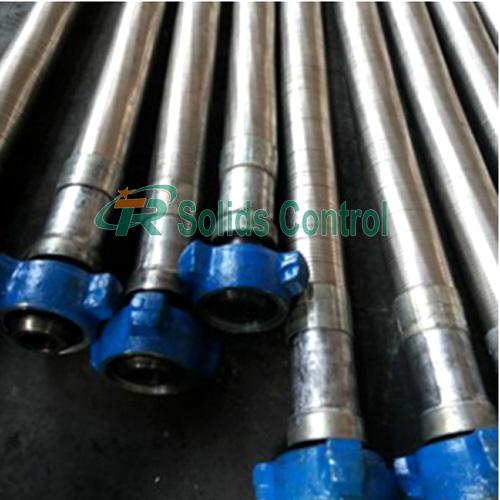

Well Repairing Drill Spare Parts API 7K Grade Fuel Oil Mud Rotary Drilling Hose
API 7K Grade D and E Fuel Oil Mud Rotary Drilling Hose / Oil Drilling Hose
Tube: NBR, specially compounded for handling abrasive, corrosive and oil-based drilling mud.
Reinforcement: Multiple layers of polyester cord over tube, high tensile steel cables.
Cover: NBR, Specially compounded, resistant to abrasion, corrosion, cutting, gouging, oil and weather.
Coupling Fitting: Hammer Unions, API Male End, Flanges.
Standard: API Spec 7k
Technical Data of Our Drilling Hose
| Drilling Hose Technical Specifiction | ||||||||
| Product Number | Hose I.D | W.D | C.O.D | Max W.P. | P.P | Min B.P | Min B.R. | Weight |
| mm | mm | mm | PSI | PSI | PSI | mm | Kg/m | |
| DH-2SP-64 | 64±1.0 | 73.4±1.5 | 77±2.0 | 1493 | 2987 | 4480 | 900 | 6.40 |
| DH-2SP-76 | 76±1.0 | 93±1.5 | 98±2.0 | 1493 | 2987 | 4480 | 1200 | 8.50 |
| DH-2SP-89 | 89±1.4 | 106±1.5 | 111±2.0 | 1493 | 2987 | 4480 | 1400 | 11.00 |
| DH-2SP-102 | 102±1.5 | 119±2.0 | 124±3.0 | 1493 | 2987 | 4480 | 1400 | 13.60 |
| DH-2SP-127 | 127±1.5 | 135±2.0 | 140±3.0 | 1493 | 2987 | 4480 | 1600 | 15.50 |
| DH-2SP-152 | 152±2.0 | 173±3.0 | 180±4.0 | 1493 | 2987 | 4480 | 1700 | 18.00 |
| DH-2SP-203 | 203±2.0 | 225±3.0 | 232±4.0 | 1493 | 2987 | 4480 | 3050 | 24.00 |
| DH-2SP-254 | 254±2.0 | 280±3.0 | 288±4.0 | 1493 | 2987 | 4480 | 3810 | 30.00 |
| DH-2SP-305 | 305±2.0 | 330±3.0 | 338±4.0 | 1493 | 2987 | 4480 | 4510 | 36.00 |
| DH-4SP-38 | 38±1.0 | 52.5±1.0 | 55±1.5 | 5075 | 10143 | 12679 | 600 | 4.62 |
| DH-4SP-45 | 45±1.0 | 58.8±1.0 | 62±1.5 | 5075 | 10143 | 12679 | 700 | 5.20 |
| DH-4SP-51 | 51±1.0 | 65.5±1.0 | 69.3±1.5 | 5075 | 10143 | 12679 | 900 | 5.70 |
| DH-4SP-64 | 64±1.0 | 79.9±1.5 | 84±2.0 | 5075 | 10143 | 12679 | 900 | 6.70 |
| DH-4SP-76 | 76±1.0 | 104±1.5 | 109±2.0 | 5075 | 10143 | 12679 | 1200 | 16.20 |
| DH-4SP-89 | 89±1.4 | 117±1.5 | 122±2.0 | 5075 | 10143 | 12679 | 1400 | 18.40 |
| DH-4SP-102 | 102±1.5 | 129±2.0 | 135±3.0 | 5075 | 10143 | 12679 | 1400 | 20.30 |
| DH-4SP-127 | 127±1.5 | 144.5±2.0 | 150.5±3.0 | 5075 | 10143 | 12679 | 1600 | 22.50 |
| DH-4SP-152 | 152±2.0 | 184±3.0 | 192±4.0 | 2320 | 4640 | 6960 | 1700 | 24.00 |
| DH-6SP-51 | 51±1.0 | 69.2±1.0 | 73±1.5 | 10150 | 20230 | 25400 | 900 | 6.20 |
| DH-6SP-64 | 64±1.0 | 85±1.5 | 89.5±2.0 | 10150 | 20230 | 25400 | 900 | 7.40 |
| DH-6SP-76 | 76±1.0 | 113.5±1.5 | 118.5±2.0 | 10150 | 20230 | 25400 | 1500 | 23.70 |
| DH-6SP-89 | 89±1.4 | 124.5±1.5 | 129±2.0 | 10150 | 20230 | 25400 | 1500 | 26.60 |
| DH-6SP-102 | 102±1.5 | 136.5±2.0 | 141.5±3.0 | 10150 | 20230 | 25400 | 1500 | 29.80 |
Main Advantages of Our Drilling Hose:
1. It has 2-5 ply of steel wire to ensure the working pressure and the workload.
2. It added the antioxidant and extension the working time.
3. The length is 1000mm-10000mm or according customers’ requirement.
4. It has DN125 (5.5''),DN150,DN175 and other sizes or according customers' requirement.
5. It is used for conveying concrete in construction work. Its working ability is 25000-35000 CBM.
