High Pressure Oil Well Drilling Hose / Hydraulic Rubber Hose For Drilling
High Pressure Oil Well Drilling Hose / Hydraulic Rubber Hose for Drilling

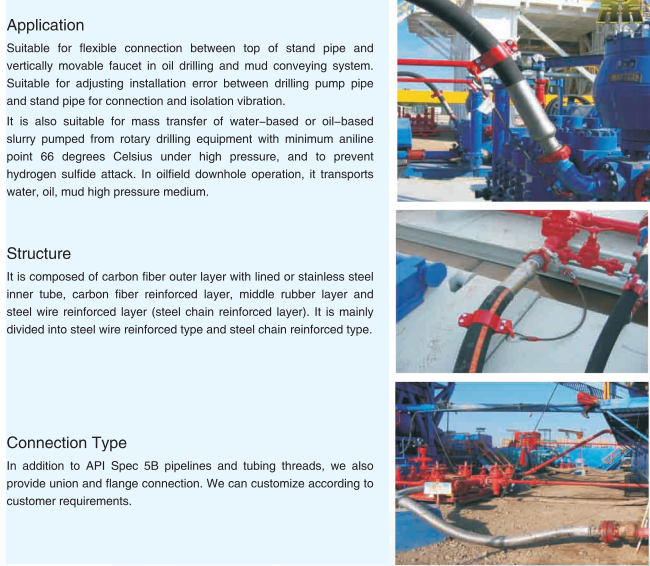

Construction: Usually drilling hose is composed of an inner rubber protection layer, middle rubber layer, steel wire spiral layer and external rubber cover.
Certification/Standards:
API Spec 7K-ISO 14693-NACE MR0175
Technical Parameters of Oil Drilling Hose
| Drilling Hose Technical Specifiction | ||||||||
| Product Number | Hose I.D | W.D | C.O.D | Max W.P. | P.P | Min B.P | Min B.R. | Weight |
| mm | mm | mm | PSI | PSI | PSI | mm | Kg/m | |
| DH-2SP-64 | 64±1.0 | 73.4±1.5 | 77±2.0 | 1493 | 2987 | 4480 | 900 | 6.40 |
| DH-2SP-76 | 76±1.0 | 93±1.5 | 98±2.0 | 1493 | 2987 | 4480 | 1200 | 8.50 |
| DH-2SP-89 | 89±1.4 | 106±1.5 | 111±2.0 | 1493 | 2987 | 4480 | 1400 | 11.00 |
| DH-2SP-102 | 102±1.5 | 119±2.0 | 124±3.0 | 1493 | 2987 | 4480 | 1400 | 13.60 |
| DH-2SP-127 | 127±1.5 | 135±2.0 | 140±3.0 | 1493 | 2987 | 4480 | 1600 | 15.50 |
| DH-2SP-152 | 152±2.0 | 173±3.0 | 180±4.0 | 1493 | 2987 | 4480 | 1700 | 18.00 |
| DH-2SP-203 | 203±2.0 | 225±3.0 | 232±4.0 | 1493 | 2987 | 4480 | 3050 | 24.00 |
| DH-2SP-254 | 254±2.0 | 280±3.0 | 288±4.0 | 1493 | 2987 | 4480 | 3810 | 30.00 |
| DH-2SP-305 | 305±2.0 | 330±3.0 | 338±4.0 | 1493 | 2987 | 4480 | 4510 | 36.00 |
| DH-4SP-38 | 38±1.0 | 52.5±1.0 | 55±1.5 | 5075 | 10143 | 12679 | 600 | 4.62 |
| DH-4SP-45 | 45±1.0 | 58.8±1.0 | 62±1.5 | 5075 | 10143 | 12679 | 700 | 5.20 |
| DH-4SP-51 | 51±1.0 | 65.5±1.0 | 69.3±1.5 | 5075 | 10143 | 12679 | 900 | 5.70 |
| DH-4SP-64 | 64±1.0 | 79.9±1.5 | 84±2.0 | 5075 | 10143 | 12679 | 900 | 6.70 |
| DH-4SP-76 | 76±1.0 | 104±1.5 | 109±2.0 | 5075 | 10143 | 12679 | 1200 | 16.20 |
| DH-4SP-89 | 89±1.4 | 117±1.5 | 122±2.0 | 5075 | 10143 | 12679 | 1400 | 18.40 |
| DH-4SP-102 | 102±1.5 | 129±2.0 | 135±3.0 | 5075 | 10143 | 12679 | 1400 | 20.30 |
| DH-4SP-127 | 127±1.5 | 144.5±2.0 | 150.5±3.0 | 5075 | 10143 | 12679 | 1600 | 22.50 |
| DH-4SP-152 | 152±2.0 | 184±3.0 | 192±4.0 | 2320 | 4640 | 6960 | 1700 | 24.00 |
| DH-6SP-51 | 51±1.0 | 69.2±1.0 | 73±1.5 | 10150 | 20230 | 25400 | 900 | 6.20 |
| DH-6SP-64 | 64±1.0 | 85±1.5 | 89.5±2.0 | 10150 | 20230 | 25400 | 900 | 7.40 |
| DH-6SP-76 | 76±1.0 | 113.5±1.5 | 118.5±2.0 | 10150 | 20230 | 25400 | 1500 | 23.70 |
| DH-6SP-89 | 89±1.4 | 124.5±1.5 | 129±2.0 | 10150 | 20230 | 25400 | 1500 | 26.60 |
| DH-6SP-102 | 102±1.5 | 136.5±2.0 | 141.5±3.0 | 10150 | 20230 | 25400 | 1500 | 29.80 |
Main Advantages of Drilling Hose:
- It provides superior kink resistance and fatigue resistance and longer services life..
- It has 2-5 ply of steel wire to ensure the working pressure and the workload.
- It added the antioxidant and extension the working time.
- The length is 1000mm-10000mm or according customers’ requirement.
- It provides superior bonding in hose internal, soft use and small deformation under pressure
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
