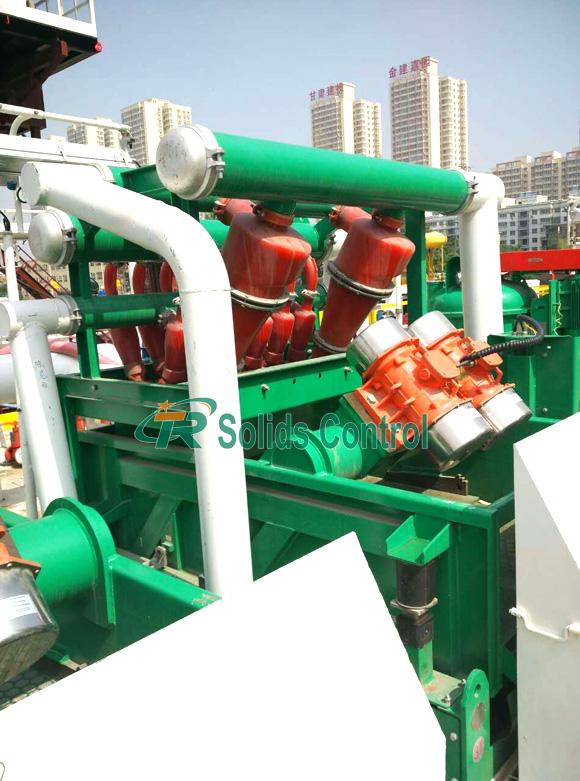

240m3/H Capacity Mud Cleaning Equipment Well Mud Cleaner 1250kg Weight

Best Price Solids Control Drilling Well Mud Cleaner , Drilling Mud Cleaner

Introduction

Drilling mud desander is a kind of solid control equipment, which is commonly used in oil and gas field for drilling rigs. TRQJ series drilling mud cleaner are combined from Desander, Desilter and and Underflow Screen. Our Mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker.

TR mud cleaners are designed to handle the entire circulating volume to remove and dry solids while retaining premium base fluid. They are equally effective for both weighted and unweighted drilling-fluids. With our drilling fluids mud cleaners, the hydrocyclones make the primary separation with underflow directed onto the shaker vibrating screen. Our mud cleaners have been proved effective in lowering both drilling-fluid and disposal costs.

Key Features of TRQJ Series Mud Cleaner

1. Mechanical Deck is adjustable during operation, reliable performance.
2. Hook-strip shaker screens for fast screens changing with screens.
3. Compact design with small footprint, with top feed and weir feed two option.
4. Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.
5. Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.
6. Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.

Technical Specification of Drilling Mud Cleaner

Main Application

Drilling mud cleaner is now widely used in trenchless HDD, oil & gas drilling, city bored piling, tunneling construction, Drilling Waste Management, Coal Bed Gas Solids Control System, mining, Oil Mud Seperation, environment protection, Oil Sludge Dewatering Systems, Water Drilling etc. TR mud cleaner has exported to many countries like Egypt, USA, Canada, Thailand, Poland, Australia, UAE, South Africa etc.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
