Main Introduction

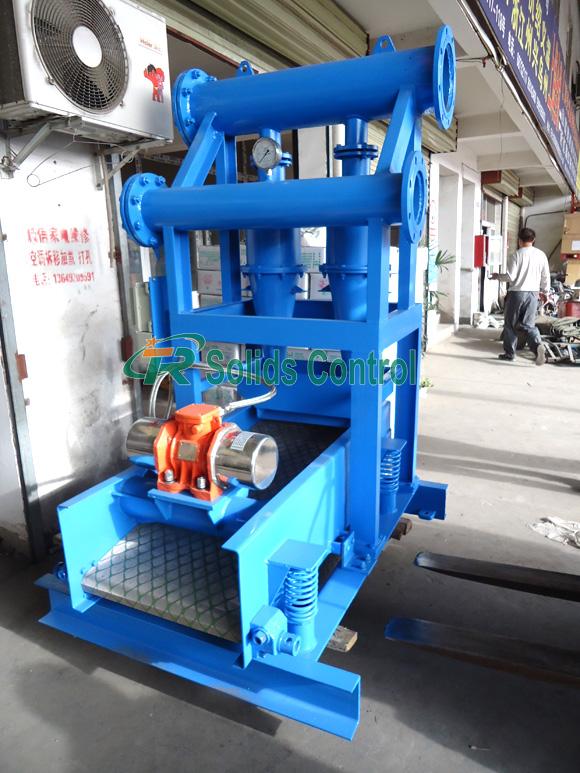

Drilling mud desander has already been one of our TR’s main products that ever requested very often from clients. TRCS series desander manufactured by TR Solids Control overcomes the shortcomings of the original desanding process. It consists of inlet pipe, desanding hydrocyclone, underflow shaker and discharge port. TR’s desander is with advantages of high quality hydrocyclones, large capacity, small noise, strong separation ability, long service time and easy maintenance. They are getting more and more attention from clients.
Characterstics of TRCS Series Mud Desander
- Internation brand vibrating motor, Martin or Oli Motor.
- Flexible fast connection are available for user assembly.
- Pure polyurethane or high-chromium for hydrocyclones.
- Replaceable hydrocyclones.
- Compact design with small footprint.
- Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.
- Clamp connection for hydrocyclones installation, easy to dismantle and replace.
Specifications of TRCS Series drilling desander
| Model | TRCS200-1S/2S | TRCS250-1S/2S | TRCS250-3S | TRCS300-1S/2S |
| Capacity | 60m3/120m3/h | 100m3/200m3/h | 300m3/h | 120m3/240m3/h |
| Cyclone Specs | 8” | 10” | 10” | 12” |
| Cyclone Qty | 1nos/2nos | 1nos/2nos | 3nos | 1nos/2nos |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN150mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN200mm |
| Separation Point | 45μm -75μm | |||
| Bottom Shaker | TRTS60 | TRTS60 | TRZS752 | TRZS752 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 1835*1230*1810mm |
| Weight | 570kg/620kg | 670kg/760kg | 1300kg | 1380kg |
| Remark | All desander could be customized without bottom shaker. | |||
Main Application
TR Mud Desander is currently used in microtunneling, oil & gas drilling, Drilling Waste Management, trenchless HDD, city bored piling, tunneling construction, Oil Sludge Dewatering Systems,mining, Oil Mud Seperation, Coal Bed Gas Solids Control System, environment protection, Water Drilling etc. Our mud desander has good price and short delivery. Welcome your inquiry and consulting!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
