Oilfield Well Drilling Rig Solid Control Mud Agitator 1000mm Impeller Diameter
Chinese Factory Supply Oilfield Well Drilling Rig Solid Control Mud Agitator
Main Introduction

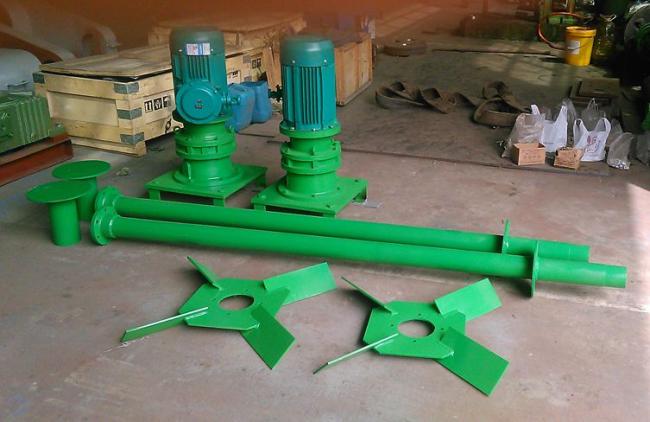

Mud agitator is an ideal device for stirring, mixing liquid and preventing the solid-phase precipitation in the mixture. TR Solids Control is a professional manufacturer in mud agitator with competitive price and high efficiency. Our agitator is divided into horizontal mud agitator and vertical mud agitator. TR mud agitator has a variety of structure, it has small operating noise, long service life, less wearing parts, and cost-effective.The gearbox adopts worm gear, which makes it more reliable. Motor and gear box will be connected by coupling directly. Agitation speed is more stable. Shaft and blades are customizable. Welcome to contact us for an inquiry at any time.
TRJBQ series mud agitators are the mud mixers on circulating tank. Our agitators includes the horizontal and vertical type. That is meant by motor mounting direction. Nowadays, more and more users prefer the helical bevel geared agitator. This is because that the helical bevel gear box will be more stable and reliable than the helical worm and wheel gearbox.
Main Features of Drilling mud agitator:
- Small size, compact structure.
- Long lifespan, less wearing parts, and cost-effective.
- The gearbox adopt more reliable worm gear.
- Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
- Using high-pressure airless spraying equipment construction, after primer, intermediate coat, finishing coat and other processes to achieve beautiful appearance and antiseptic effect.
- Good heat exchange performance makes agitator faster cool down.
Technical Parameters of Drilling Mud Agitator
| Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
| TRJBQ3 | 3kw | 60/72r/min | 600mm | 1 |
ExdIIBt4/IECEX/A-TEX |
190kg | 909×525×527mm |
| TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm | ||
| TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm | ||
| TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm | ||
| TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm | ||
| TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm | ||
| TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm | ||
| Remark | Above weight and dimension exclude mud agitator shaft. | ||||||
We are a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and TRJBQ series mud Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably.This agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. Therefore, it is a reliable product in the solids control system. Welcome friends from all over the world to come to visit our factory and guidance our work.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
