35m Lift Horizontal Electric Centrifugal Pump 275m3/H Flow Rate 55kw Power
Supply API Standard Drilling Solid Control Horizontal Centrifugal Sand Pump
Product Introduction

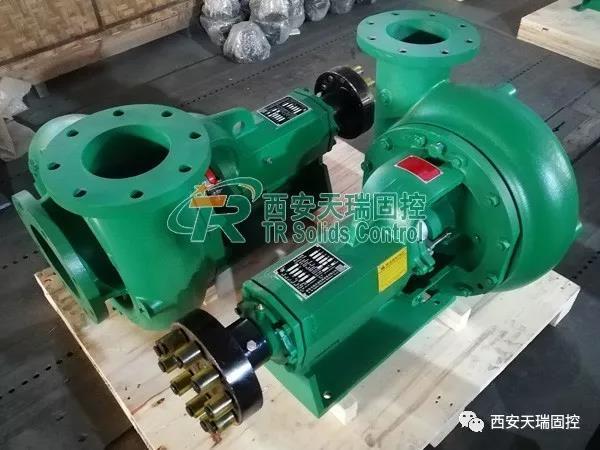

Centrifugal sand pump is used to provide drilling liquid with a certain discharge capacity and pressure to desander,desilter and mud pump. The centrifugal pump developed by TR Solids Control through over more than ten years of site applications and improvements is in the domestic advanced level, either in technical performance or in sealing life, and reaches the same level as the similar products abroad.
Compared with the general pump, our TRSB series centrifugal pump is with excellent performance, high traffic, high temperature, long service life, easy maintenance, high reliability and remarkable energy saving characteristics. Now it is widely used around the world on onshore and offshore drilling site. We will provide customers with the best pumps to meet different requirements.
Main Benefits of TRSB Centrifugal Pump
- Pump parts can be interchangeable with international brands.
- Mechanical seal is made of high anti-corrosive alloy. More durable and longer service life.
- Imported SKF bearing. More assurance on quality.
- Oil or grease bearing lubrication make bearing more adaptable and long life.
- Selection of alloy cast iron impeller, greater resistance to corrosion.
- Thicker pump shell.
- Alloy gray iron pump shell, longer life.
Technical Data of Centrifugal Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
Application
TRSB centrifugal pump is currently used in city bored piling, oil & gas drilling, Drilling Waste Management, Coal Bed Gas Solids Control System, trenchless HDD, mining, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Water Drilling etc. TRSB series centrifugal pumps are made of high-wearable cast irons to improve the service life by 50%. Front opening structure for easy installation and maintenance of the centrifugal pumps.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
