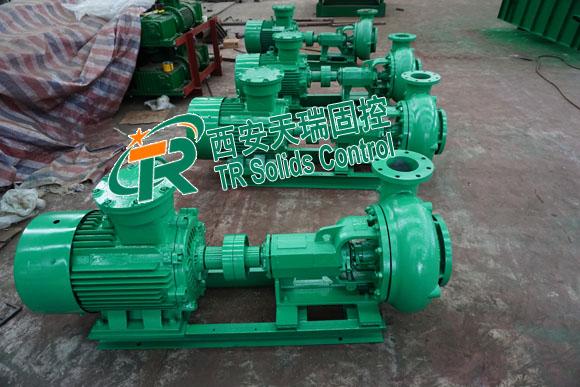

Oil Drilling Centrifugal Mud Pump Centrifugal Sand Pump 11 Inch Impeller Diameter
Oil Drilling Mud Solid Control Centrifugal Pump , Centrifugal Sand Pump
Introduction
Centrifugal Pump is also called as Sand Pump, Mixing Pump, Feeding Pump, Replenishing Pump and Filling Pump. It is the ideal matching equipment to provide impetus for desander, desilter and Jet mud mixer. Centrifugal pump can also be an assistant mud infusion pump and trip pump at well head. TR centrifugal pump can realize the quick positioning and installation.
TRSB series centrifugal sand pump is used to provide drilling liquid with a certain discharge capacity and pressure to desander,desilter and mud pump. The centrifugal pump developed by TR Solids Control through over more than ten years of site applications and improvements is in the domestic advanced level, either in technical performance or in sealing life, and reaches the same level as the similar products abroad.
Benefits of TR Centrifugal Sand Pump:
- Adopt Imported SKF bearing. More assurance on quality.
- High anti-corrosive alloy mechanical seal. More durable and longer service life.
- Bearing lubrication can be oil and grease. Make bearing more adaptable and long life.
- Pump shell using alloy gray iron, longer life.
- Pump parts can be interchangeable with international brands.
- Alloy cast iron impeller, greater resistance to corrosion.
Technical Data of TR Centrifugal Sand Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
Design Advantages of Our Centrifugal Pump
- Impeller with open vane structure
- The open vane structure impeller reduces the shaft load to minimum, more suitable for transferring high density and high viscosity mud.
- Higher efficiency and longer service
- increase the output and efficiency. Utilizing wear-resistant materials for the key parts to prolong the service life.
- Axial adjustment structure makes it free to adjust the clearance between impeller and mechanical seal, ensuring equipment operation more reliable.
- A variety of pump casing and impeller can meet different requirements of the customers.
- The same power frame reduces the spare parts.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
