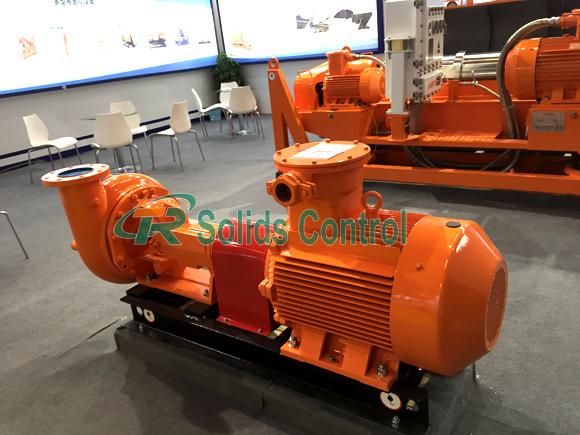

Oil Well Drilling 7.5KW Horizontal Centrifugal Pump 30m3/H Flow Rate ISO Certified
Oil Well Drilling 7.5KW Horizontal Centrifugal Pump / Centrifugal Sand Pump
Product Introduction
Centrifugal pump is a kinds of drilling fluid pump developed for special installation requirement. Horizontal sand pump is commonly used in drilling fluids, but it does not have self-priming function and can be installed under mud tank to make the tank volume small. Also horizontal sand pump is not easy to disassemble. Therefore, TR developed a new type of vertical sand pump for this purpose.
TR Solids Control is a professional designer and manufacturer of centrifugal sand pump. We will provide you with the best quality centrifugal sand pump and mud after-sell service.The rotational energy typically comes from an engine or electric motor. We supply pumps driven by 10HP to 100HP, which are popular in drilling mud process. Pumps size are 3x2, 4x3, 5x4, 6x5, 8x6. They will perform differently under different power, voltage, or frequency.
Advantages of TRSB Series Centrifugal Pump:
- Imported SKF bearing. More assurance on quality.
- Selection of alloy cast iron impeller, greater resistance to corrosion.
- Alloy gray iron pump shell, longer life.
- Pump parts can be interchangeable with international brands.
- Oil or grease bearing lubrication make bearing more adaptable and long life.
- Mechanical seal is made of high anti-corrosive alloy. More durable and longer service life.
- Thicker pump shell.
Main Parameters of Centrifugal Sand Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
TR Solids Control is absorbed in developing our product line continuously and offering innovative solutions to our customers. Our centrifugal pump can be totally interchangeable with Mission series pump. We have competitive price and high standard.
TRSB series centrifugal pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
