37kw Power Centrifugal Mud Pump High Efficiency 30m Lift 60HZ 771kg Weight

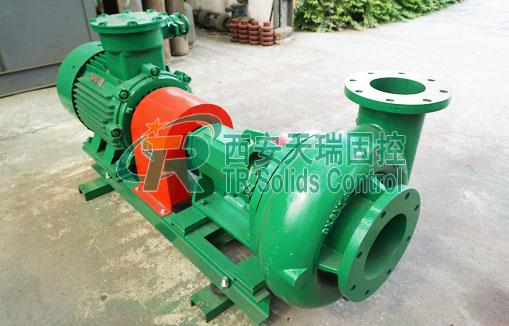

SB6*5-9J Centrifugal Sand Pump for Sale, China Cetrifugal Pump Supplier
Main Introduction
Centrifugal sand pump is used to provide drilling liquid with a certain discharge capacity and pressure to desander,desilter and mud pump. The centrifugal pump developed by TR Solids Control through over more than ten years of site applications and improvements is in the domestic advanced level, either in technical performance or in sealing life, and reaches the same level as the similar products abroad.
Our centrifugal pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
How to check centrifugal pump?
- Leveling of pump. Leveling work should comply with provisions of technical documents;
- Check if its fundamental dimension, location, and elevation comply with design requirement? Foundation bolts must fixed on steady pump rack. It won’t occur missing parts, damage and corrosion;
- According to the speciality of transferring liquid, we should check main parts, material of sealing element and gasket;
- Check all pipelines connected with centrifugal pump. Does installation of pipe and cleaning requirement of lubricating pipeline comply with relevant standard.
Technical Data of Our Centrifugal Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
Product Application
Our centrifugal pump is widely used in industries like oil & gas drilling, Drilling Waste Management, Oil Sludge Dewatering Systems, city bored piling, trenchless HDD, mining, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling etc. Our centrifugal pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
