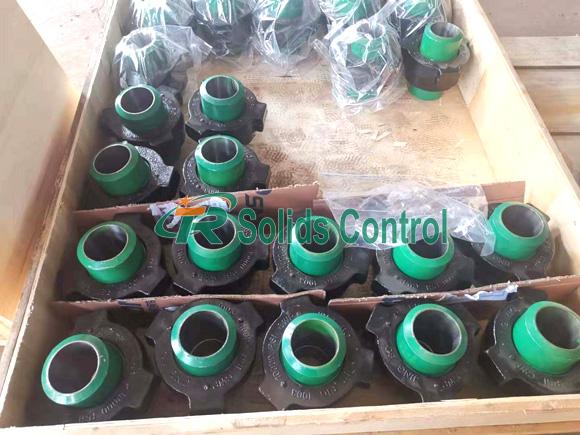

API Standard Drill Spare Parts Hammer Union 1 - 12 Inch For Oil And Gas Drilling
API Standard High Quality Hammer Union for Oil and Gas Drilling
Brief Introduction
High-pressure pipe connection (hummer union) for the cement truck, fracturing trucks, all kinds of manifolds, pipelines and other high voltage equipment, accessories, transport is an important oil, water, fracturing fluid and mixed fluid. This product is made of high quality forged steel and finished steel with good mechanical properties, sealing performance and different pressure levels, it is the ideal accessory oil drilling operations.
Hammer Union can be used for many kinds of hoses, cementing trucks, and hose pipes in oilfield. It is an important part for transporting water, oil, fracturing fluid and mixed fluid or sand. These products are made of high quality carbon steel by forging and cutting. They have high mechanical performance and sealing features. Especially when they operate under the bad weather situation. They can be assembled fixed easily and conveniently. Main technical parameter model number collecting norm working pressure, structural length drift diameter. The product adopts to end connections of pipeline thread, tubing thread, butt-weld.
Structural Characterstics of Hammer Union:
- Forged stainless unions conform to MSS SP-83.
- Forged stainless outlets conform to MSS SP-97.
- All fittings are rated for 3000 PSI or greater.
- Forged stainless steel material conforms to ASME A182.
- Forged stainless steel fitting dimensions conform to ASME B16.11.
- NPT threads conform to ASME B1.20.1 Socket Weld Fittings conform to ASME B16.11.
- Forged stainless socket weld inserts conform to MSS SP-79.
Technical Specifications of TR Hammer Union
| Type | Connect Pipe O.D. |
Female Sub * Weld to |
Mud Tank Union Dimensions in mm |
|||||||
A |
B |
C |
D |
E |
F |
G |
H |
|||
| 4-inch | 4 ½"(114.3mm) | 6" | 264 | 168 | 150 | 127 | 50 | 155 | 114 | 21 |
| 6-inch | 6 5/8"(168.3mm) | 8" | 340 | 219 | 200 | 127 | 50 | 208 | 168 | 21 |
| 8-inch | 8 5/8"(219.1mm) | 10" | 343 | 273 | 253 | 127 | 50 | 258 | 219 | 21 |
| 10-inch | 10 3/4" (273.1mm) | 12" | 432 | 325 | 305 | 127 | 50 | 311 | 273 | 21 |
| 12-inch | 12 3/4"(323.9mm) | 14" | 491 | 355 | 336 | 127 | 50 | 364 | 324 | 21 |
| 14-inch | 14" (355.6mm) | 16" | 557 | 406.4 | 381 | 127 | 50.8 | 395 | 356 | 21 |
| 16-inch* | 16"(406.4mm) | 18" | / | / | / | / | / | / | / | / |
| 18-inch* | 18"(457mm) | 20" | / | / | / | / | / | / | / | / |
| 20-inch* | 20"(508mm) | 22" | / | / | / | / | / | |||
