High Efficiency Oilfield Drilling Equipment 11kw Motor Power 500 * 500mm Hopper Dimension
China High Quality Oilfield Drilling Equipment Jet Mud Mixer
Brief Introduction
TRSL Series Hopper is used to concoct the drilling fluids and to change its density and viscosity. mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. In addition, it’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.
TRSLH series jet mud mixer is matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can enhance dispersion effect of material, improve pressure head of mixed liquid, make the material recycle and mix enough in the mud tank.
Strengths of TR Drilling Jet Mud Mixer

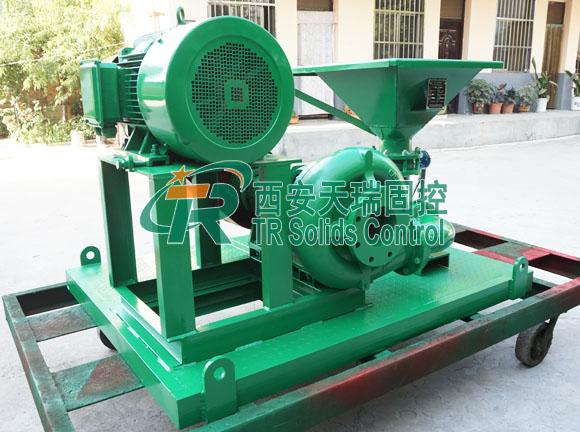

- Single jet mud mixer is composed of one sand pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.
- Jet mixing hopper and sand pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, which have good sealing performance.
- Jet mud mixer can change the density, viscosity and water loss effectively, and also enhance material dispersion effect, improve the mixed liquid pressure head, so that the material in the tank fully mixed.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matching Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Work Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Dimension | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
TRSLH series jet mud mixers are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays mud hopper is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. If you have any new inquiry of jet mud mixer, welcome to contact with us freely!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
