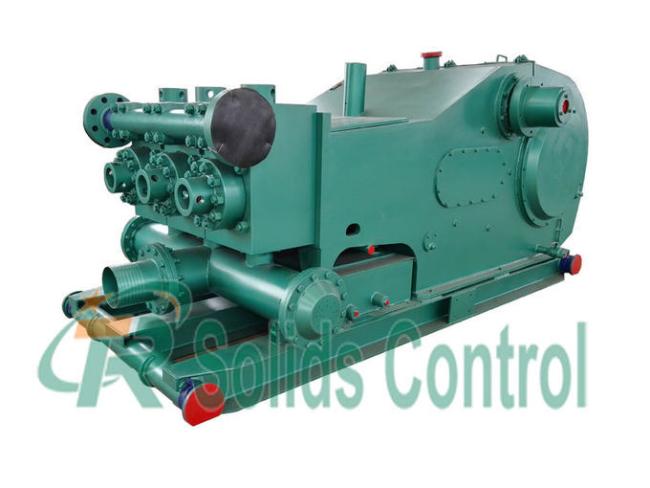

Oil Well Drilling F-800 Triplex Mud Pump Corrosion Resistant Stainless Steel Material
Oil Well Drilling F-800 Triplex Mud Pump Corrosion Resistant Stainless Steel Material
Product Description
We are professional on supplying below drilling mud pumps:
Brands:EMSCO/GARDNER DENVER/NOV/OILWELL/TSC/BOMCO/RONGSHENG/HONGHUA etc
F series Mud Pump:F-350,F-500,F-800,F-1000,F-1300,F-1600,F-2200;
PZ series Mud Pump:PZ-7,PZ-8,PZ-9,PZ-10,PZ-11;
3NB series Mud Pump:3NB-350,3NB-500,3NB-600,3NB-800,3NB-1000,3NB-1300,3NB-1300C,3NB-1600,3NB-2200;
BW series Mud Pump:BW-100,BW-150,BW-250,BW-300 etc;
CWB Series Mud Pump:CWB-1000,CWB-1500,CWB-2000 etc;
Features of Oil well Triplex Mud pump
1. The frame which adopts steel welding parts, has features of good rigidity, high strength and light weight
2. The intermediate tie rod is modeled and weaved with double sealing structure which has good sealing effect
3. Crosshead and crosshead guide is durable and have long service life
4. The cylinder is made of alloy steel forgings, and the three cylinders of each pump areinterchangeable
5. In order to enhance its corrosion resistance, the cylinder surface is processed by chemical nickel plating
6. The suction valve and discharge valve of F500,F800,F1000 are interchangeable
7. The power end adopts the combination of forced lubrication and splash lubrication which can achieve the goal of forced lubrication.
8. Each mud pump can match a infusion system to achieve the effect of energy saving

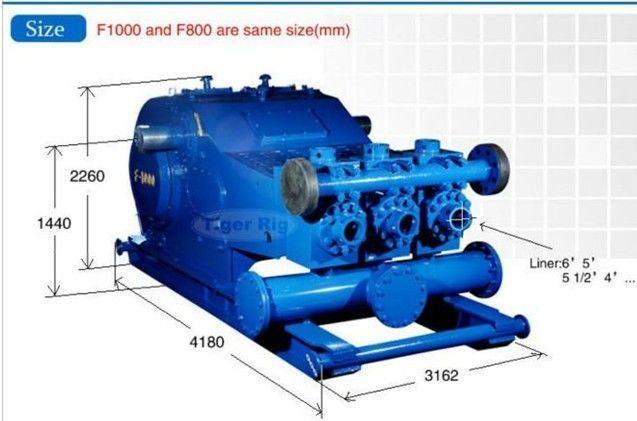

Technical Data of TR Mud Pump
| Model | F-800 | F-1000 | F-1300 | F-1600/1600L | F-2200 |
| Max.Liner Size*Stroke |
170*229 (6-3/4*9) |
170*254 (6-3/4*10) |
180*305 (7*12) |
180*305 (7*12) |
230*356 (9*14) |
| Rating Strokes s/min | 150 | 140 | 120 | 120 | 105 |
| Rating Power kW | 597(800hp) | 746(1000hp) | 969(1300hp) | 1193(1600hp) | 1640(2000hp) |
| Gear Ratio | 4.185 :1 |
4.2074:1 | 4.206:1 | 4.206:1 | 3.512:1 |
| Suction Flange | 10 | 12 | 12 | ||
| Discharge Flange | 5 | 5 | 5 | ||
| Pinion Shaft Dia.mm | 177.8(7) | 196.9(7-3/4) | 215.9(8-1/2) | 215.9(8-1/2) | 254(10) |
| Key mm(in) |
44.5*44.5 (1-3/4*1-3/4) |
50.8*50.8 (2*2) |
50.8*50.8 (2*2) |
50.8*50.8 (2*2) |
63.5*44.45 (2-1/2*1-3/4) |
| Valve Pots | Valve-over-valve API#6 | Valve-over-valve API#6 | Valve-over-valve API#7 | Valve-over-valve API#7 | Valve-over-valve API#8 |
| Approx.Weight kg(Ib) | 14500(31970) | 18790(41420) | 24572(54170) |
24791(54660) 25900(57100) |
38460(84790) |
TR Solids Control is a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and JBQ series Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably.This agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. Due to the simplex turbine decelerator, this product is featured by compact construction, light weight, balanced transmission, low noise, high efficiency of transmission and strong agitating power. Therefore, it is a reliable product in the solids control system.
