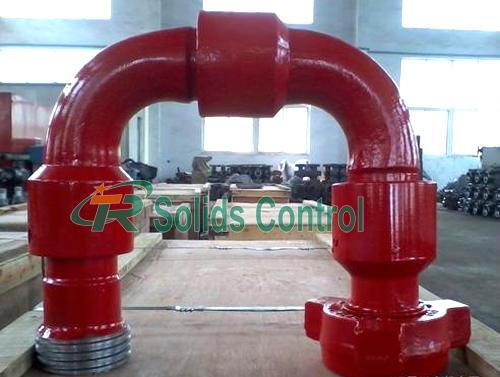

API Standard High Pressure Swivel Joint for Oilfield Drilling

Main Introduction

The annular manifold mainly includes 3 types: Short-radius movable manifold, long-radius movable manifold and integral movable manifold, with specification being 1-1/2", 2", 3" and 4" and working pressure being 35MPa~105MPa( 5000psi~15000psi).

The movable elbow equipped for annular manifold has such characteristics as flexibility, shock resistance, anti-vibration and large discharge. The annular manifold is connected by wing nut and has such characteristics as quick tightening and disassembly, pressure resistance and sealing, which is easy for coincidence and convenient for transportation and storage.

We could supply long and short radius swivel joints. Long radius swivel joints can minimize fluid shock,and has better performance of resistance for scouring and erosion.We also need to use short radius swivel joints for low pressure operation due to limited installation space.

Design Characterstics of TR Drilling Swivel Joint:

1. Specifically for high pressure applications.
2. Various end connections including integral union or Line Pipe Thread.
3. Streamlined bore minimizes flow restrictions, turbulence and pressure drop.
4. Long-sweep Swivel Joints have extra-long radius elbows for better flow characteristics.
5. Smooth rotation and movement without sacrificing strength and integrity of the steel.

Technical Specifications of TR Swivel Joint

Oilfield swivel joint (compatible with FMC Chiksan swivel joint) are metal pipe adapters installed with roller bearing and forged from high quality alloy steel, specially adapted to handle a variety of oilfield flowlines. Style 10,20,30,50,60,80,100 long radius swivel joints and style 10,20,30,40,50,60,70,80 short radius swivel joints are available in stock, which can allow 360-degree roation(rotation.Sour gas swivel joints are in accordance with NACE MR-01-75 and API RP-14-E.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
