Oil Well H Type Safety Joint 70Mpa Drill Spare Parts

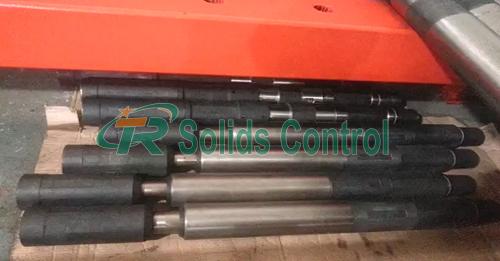

API Standard Oilfield Oil Well Fishing Tools H Type Safety Joint
Product Overview
AJ Type Safety Joint: AJ safety joint is one kind of safety back off tool which is connecting with drilling string and all kinds of working string in downhole operation. When sticking in well and need back off, it is easy to back off from connection thread of its body. Pull out drill pipe and tubing above its pin joint. It is easy and reliable to back off or make up again in downhole.
H Type Safety Joint: H safety joint is one kind of downhole safety equipment for fishing,washover and testing.which is connected needed parts in downhole. It could bear all kinds of pulling and pushing loading and deliver torque.
Main Technical Parameters:
OD Range: 3-3/4" ~8"
Tool joint connection: API
Tensile yield strength (Lbf): 453,000 ~ 1,236,500
Torsion yield strength (Lbf): 18,710~153,940
Max. Tensile Load (Lb-ftb): 301,200 ~ 820,600
Max. Working Torque (Lbf-ftb): 7,480~61,000
AJ Type Specification
| Model | OD mm(inch) | ID mm(inch) | Conn. |
| AJ-C89 | 89 (3-1/2) | 44(1 47/64) | NC26 |
| AJ-C95 | 95(3-3/4) | 44(1 47/64) | NC26 |
| AJ-C105 | 105(4-1/8) | 50.8(2) | NC31 |
| AJ-C121 | 121(4-3/4) | 62(2 7/16) | NC38 |
| AJ-C127 | 127(5) | 62(2 7/16) | NC38 |
| AJ-C159 | 159(6-1/4) | 82(3 1/4) | NC50 |
| AJ-C165 | 165(6-1/2) | 82(3 1/4) | NC50 |
| AJ-C178 | 178(7) | 82(3 1/4) | NC50 |
| AJ-C203 | 203(8) | 82(3 1/4) | 6-5/8REG |
| AJ-C229 | 229(9) | 88.9(3 1/2) | 7-5/8REG |
H Type Specification
| Model | OD mm(inch) | Bore ID mm(inch) | Conn. |
| HJ105 | 105(4 1/8) | 38.1(1 1/2) | NC31(NC31LH) |
| HJ121 | 121(4 3/4) | 50.8(2) | NC38(NC38LH) |
| HJ159 | 159(6 1/4) | 57.2(2 1/4) | NC50 |
| HJ165 | 165(6 1/2) | 70(2 3/4) | NC50(NC50LH) |
| HJ168 | 168(6 5/8) | 70(2 3/4) | NC50 |
| HJ168 | 168(6 5/8) | 71(2 13/16) | NC50 |
| HJ178 | 178(7) | 70(2 3/4) | NC50 |
| HJ203 | 203(8) | 80(3 5/32) | 6-5/8REG |
