API Certified Fishing Tools Hydraulic Oilfield Spare Parts

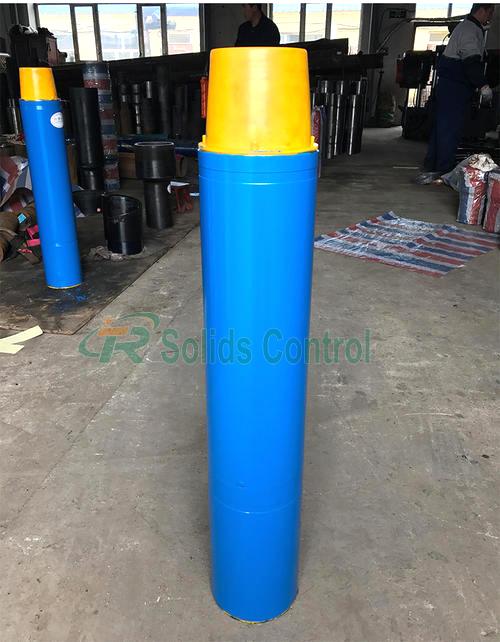

API Certified Fishing Tools Hydraulic Type Safety Joint For Oilfield
Product Introduction
AJ safety joint is one kind of safety back off tool which is connecting with drilling string and all kinds of working string in downhole operation. When sticking in well and need back off, it is easy to back off from connection thread of its body. Pull out drill pipe and tubing above its pin joint. It is easy and reliable to back off or make up again in downhole. During drilling operation, safety joint works like one drill pipe sub, its ID coincides with connected pipe string, so there is no problem for operation in the bore of pipe string. Safety joint body adopts for special wide saw form connection thread, ingenious tension structure design, when connecting, just need certain torque to connect the whole. Unless given more than 40% opposite, it won't release automatically in downhole working.
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional supplier of various oilfield equipment, including solid control equipment, oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
Packaging & Delivery
Packaging Details
oilfield drilling safety joint will be packed in wooden case or as request
Port: Tianjin port, Shanghai Port, Qingdao Port
Lead Time: Within 3-5 work days after receive the payment
AJ Type Specification
| Model | OD mm(inch) | ID mm(inch) | Conn. |
| AJ-C89 | 89 (3-1/2) | 44(1 47/64) | NC26 |
| AJ-C95 | 95(3-3/4) | 44(1 47/64) | NC26 |
| AJ-C105 | 105(4-1/8) | 50.8(2) | NC31 |
| AJ-C121 | 121(4-3/4) | 62(2 7/16) | NC38 |
| AJ-C127 | 127(5) | 62(2 7/16) | NC38 |
| AJ-C159 | 159(6-1/4) | 82(3 1/4) | NC50 |
| AJ-C165 | 165(6-1/2) | 82(3 1/4) | NC50 |
| AJ-C178 | 178(7) | 82(3 1/4) | NC50 |
| AJ-C203 | 203(8) | 82(3 1/4) | 6-5/8REG |
| AJ-C229 | 229(9) | 88.9(3 1/2) | 7-5/8REG |
H Type Specification
| Model | OD mm(inch) | Bore ID mm(inch) | Conn. |
| HJ105 | 105(4 1/8) | 38.1(1 1/2) | NC31(NC31LH) |
| HJ121 | 121(4 3/4) | 50.8(2) | NC38(NC38LH) |
| HJ159 | 159(6 1/4) | 57.2(2 1/4) | NC50 |
| HJ165 | 165(6 1/2) | 70(2 3/4) | NC50(NC50LH) |
| HJ168 | 168(6 5/8) | 70(2 3/4) | NC50 |
| HJ168 | 168(6 5/8) | 71(2 13/16) | NC50 |
| HJ178 | 178(7) | 70(2 3/4) | NC50 |
| HJ203 | 203(8) | 80(3 5/32) | 6-5/8REG |
