External Fishing API Fishing Tool Oilfield Female Die Collar
API Oilfield Fishing Tool Female Die Collar
Product Descrption

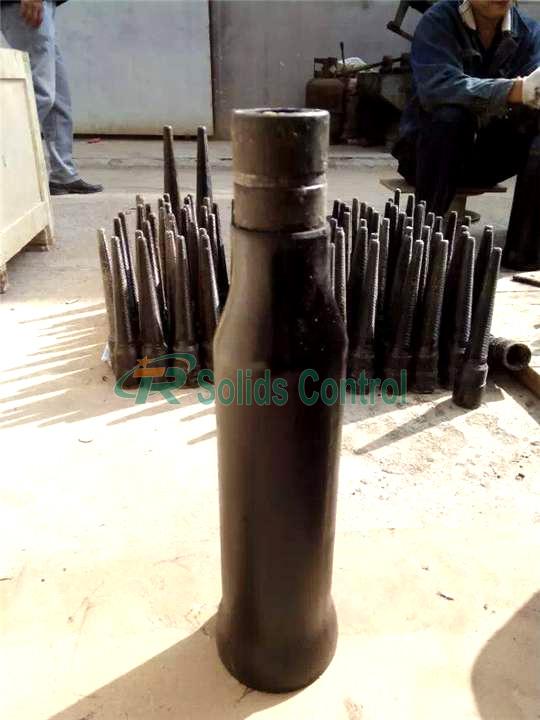

Die Collar is a special external fishing tool which is engaged on the outside wall of tubing objects such as oil tubing and drill pipe. The Die Collar are made up of high quality alloy steel and processed by special heat treatment, having the advantages of high strength, high toughness and easy tapping.
Function: die collars are used go engage the outside diameter of a fish, usually in situations where conventional releasing overshots would not be a feasible option. They are designed to tap threads into the steel so that the fish can be retrieved or the fishing job can be continued.
Our fishing tools are packed in wood cases or pallets as per API standard or as customer's requirement. Professional packing and loading machines make products' quality & appearance free from damage.
Technical Specifications of Fishing Die Collar
| Type | Connection API |
Overall Length mm(inch) |
Fishing I.D.Range mm(inch) |
| GZ-NC31-LH-1 | NC31 LH | 1607.5(63-9/32) | 39~53(1-17/32~2-3/32) |
| GZ-NC31-2 | NC31 | 557(22-23/32) | 56~60(2-13/64~2-23/64) |
| GZ-NC38-7 | NC38 | 860(33-55/64) | 84~106(3-5/16~4-11/64) |
| GZ-NC38-8 | NC38 | 860(33-55/64) | 119~141(4-11/16~5-35/64) |
| GZ-NC38-9 | NC38 | 950(37-13/32) | 97~125(3-13/16~4-59/64) |
| GZ-NC38-10 | NC38 | 710(27-61/64) | 87~100(3-27/64~3-15/16) |
| GZ-NC50-11 | NC50 | 1130(44-31/64) | 82.5~121(3-1/4~4-49/64) |
| GZ-NC50-12 | NC50 | 930(36-5/8) | 69.9~95.3(2-3/4~3-3/4) |
Xi'An TianRui Petroleum Machinery Equipment Company is well-reputed manufacturer and exporter of Oil and Gas Equipment. Our products are manufactured by using best material and modern techniques, which make them extremely up to the standard in this challenging domain. The offered products are highly appreciated among customers due to their corrosion resistance, robust design, optimum finish and high tensile strength. Also, these are available in various sizes, dimensions and patterns in order to meet the requirements of customers.
TR engages in oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
