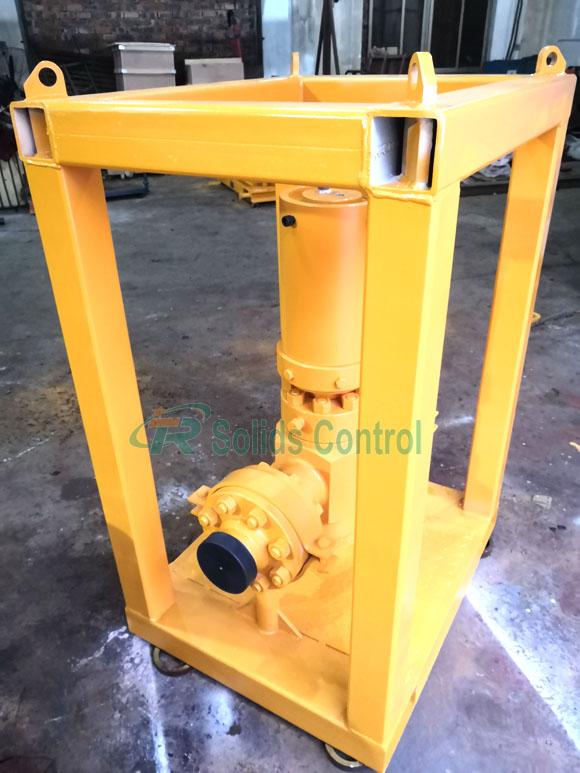

Hydraulic 15000psi 3-1/16" Oilfield Wellhead Safety Valve
Surface Safety Valve 3-1/16" 10k with Hydraulic Fail Safe
Product Introduction
Hydraulic Operated Safety Valve mainly includes prepa- ration valve and hydraulic operator, is the execution unit of well safety system. High pressure oil enter into the empty cavity of upper operator, and compress the spring of lower operator to open the valve, when the wellhead equipments suffer from dangerous pressure, control system relief the pressure of cylinder after receiving the signal sent by sensor, spring push stem to close valve and wellhead equipments, ensure the equipment safety.
All SSVs are manufactured under Type Approval or Design Verification Review and provided with a Certificate of Conformity and full quality file.
Main Specialities of Wellhead Surface Safety Valve
- Actuator Over-pressure Protection.
- High-performance Super Memory Alloy Spring.
- Compliance with API-6A (PSL-3 , PR1), NACE MR0175.
- Modular Quick Installation and Removal.
- Unique stroke calibration institutions, can make actuator apply to gate valves of any manufacturer, including gate valves with different specifications also can be used for the same model of actuator, guarantee the actuator stroke match with the valve stroke.
- Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
Specifications of Wellhead Surface Safety Valve
| Material Class | AA,BB,CC,DD,EE,FF,HH. 0.5, NL. |
|---|---|
| Valve Class | PSL1~PSL3G. |
| Valve Size | 1 13/16"~7 1/16". |
| Valve Pressure | 2000PSI~20000PSI. |
| Temp Range | K,L,N,P,S,T,U,V,X,Y. |
| Connecting Format | Flange |
| Working Temperature | High Temperature |
| Applicable Medium | Oil, Other |
| Type | Right-angle Type |
| Flow Direction | Bi-directional |
| Application | Adjust |
| Driving Mode | Hydraulic Control |
| Sealing Form | Flexible Seal |
| Material | Stainless Steel |
| Body Structure | Unclosed |
| Mpa | High Pressure |
Packing & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 30 days for production, Only 3 or 10 days if we have stock on your request size.
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a company that manufactures different oilfield solid control and down hole tools and accessories such as shale shaker, mud cleaner, decanter centrifuge, tubing anchor,torque anchor,packer,centralizer,sucker rod guide,downhole gas separator,couplings.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
