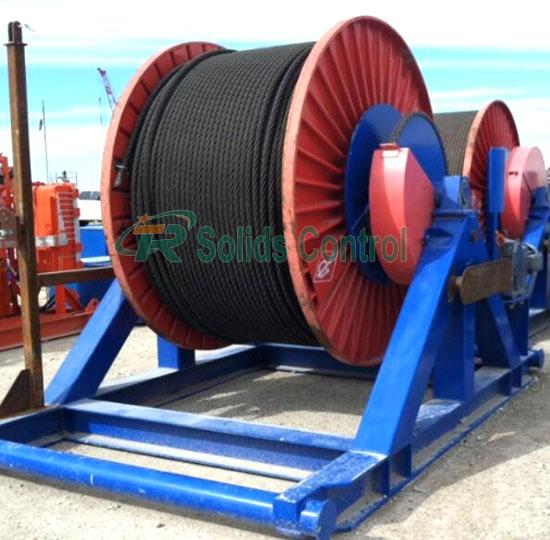

Oilfield Different Models Drilling Line Of Steel Wire Rope

Product Introduction

Wire rope consists of three basic components; while few in number, these vary in both complexity and configuration to produce ropes for specific purposes or characteristics. The three basic components of a standard wire rope design are: 1) wires that form the strand, 2) multi-wire strands laid helically around a core, and 3) the core.

Wire, for rope, is made in several materials and types; these include steel, iron, & stainless steel to name a few. By far, the most widely used material is high carbon steel. This is available in a variety of grades each of which has properties related to the basic curve for steel wire rope. Wire rope manufacturers select the wire type that is most appropriate for the requirement of the finished product.

The rope can be laid up in different ways, usually left or right hand lay. This has some implications for how the wire line should be handled and possibly some other considerations. In Figure 3, you can see several different styles of laid up wire rope. Right hand lay is much more common.

Product Information of Oilfield Wire Rope:

1. HS Code, 7312100000
2. Diameter: 1.5mm to 60mm
3. Both GB/T 20116-2008 , DIN are available.
4. Core: fiber core and steel core (FC, IWS & IWRC)
5. Nominal l tensile strength: 1570 Mpa, 1770 Mpa, 1960 Mpa etc.
6. Available Construction: 6x7, 6x19, 6x37, 6x12+7FC, 6x24+7FC, 6x36WS, 19x7, 8x19S, 35Wx7
7. Main applications: for various kinds of lifting, hoisting and pulling etc.
8. In-time shipment, high quality and good after-sale service will be guaranteed.

Technical Parameters of Our Oilfield Wire Rope

How to order?
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.

Our in stock, ready-to-ship products are available for fabricators and distributors serving the energy sector in Middle East, Europe, North America, South America, Asia, Australia and Africa. Our product offering include solutions for lifting and drilling operations, E&P activities, offshore and onshore, such as Mast Raising Lines, Drill Lines and Sandlines. Contact us today for a quote.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
