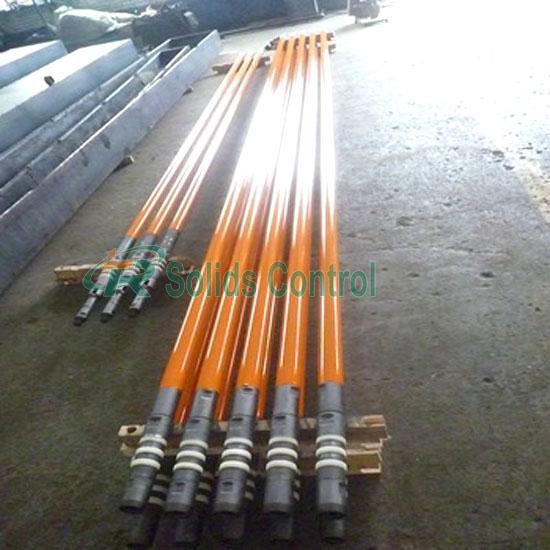

Alloy Steel 1 1/8" Polished Sucker Rod Drill Spare Parts
Alloy Steel 1-1/8" Sucker Rod Polish Rod for Oil and Gas
Product Overview
Sucker rods and couplings are manufactured in accordance with API 11B. We can supply sucker rods as follows:
Grade: C, D, K, KD, H;
Size (in,): 5/8 (16 mm), 3/4?(19 mm), 7/8 (22 mm) , 1 (25 mm), 1-1/8 (28 mm).
The pony sucker rods and conventional/slim hole couplings with various sizes are available as well.
We can also provide conventional API sucker rods, corrosion resistant sucker rods, FRP (fiber glass reinforced plastic) sucker rods, polished sucker rods and couplings, special sucker rods for progressive cavity pumps, hollow sucker rods and electric heating systems. We have provided sucker rods to Sudan, USA, Canada, Australia, India, Kazakhstan and Indonesia , Egypt etc.
Key Advantages of Oilfield Sucker Rod
- Grade D sucker rod is made from fine alloy steel, featured by high strength, better plasticity and long service life after heat treatment. This product is suitable for no-corrosion or light-corrosion environment oil-well widely.
- Grade HL and HY sucker rods are super-high strength sucker rod, having the same size and main parameter as grade D sucker rod, but their strength is capable to reach 966~1195Mpa. Grade HL, HY sucker rods are suitable for the deep oil-well or big-pump capacity oil-well.
- Grade C sucker rod is made from fine carbon steel. It is featured by mid-strength, good plasticity, toughness, corrosion resistance. It is suitable for sour medium environment where it is not susceptible to sulphuric stress cracking.
- And grade K, KD and KH sucker rod are made from fine Cr-Ni-Mo alloy steel containing different amount of Ni. They possess more powerful anti-corrosion function. The products are suitable for strong corrosion oil-well, with depth of shallow, middle and deep respectively.
Technical Parameters of Our Oilfield Sucker Rod
| Nominal Size | 1-1/8 (in) | 1-1/4 (in) | 1-1/2 (in) | ||||
| in. | mm | in. | mm | in. | mm | ||
| Outside Diameter | Dimension | 1.125 | 28.58 | 1.25 | 31.75 | 1.50 | 38.10 |
| Tolerances | +0.005 -0.010 |
+0.13 -0.25 |
+0.005 -0.010 |
+0.13 -0.25 |
+0.005 -0.010 |
+0.13 -0.25 |
|
| Nominal Diameterof Pin-thread | Dimension for referance | 0.938 | 23.83 | 1.188 | 30.18 | 1.375 | 34.93 |
| 1.063 | 27.00 | ||||||
| Note:sizes of sucker rods with which used | Nominal Dimension (for referance) | 5/8 | 7/8 | 1 | |||
| 3/4 | |||||||
| Note:Standard lengths | Dimension |
ft 22, 26,30,36, 40 |
m 4.9, 6.7,7.9, 9.1, 11.0,12.2 |
ft 22, 26,30,36, 40 |
m 4.9, 6.7,7.9, 9.1, 11.0,12.2 |
ft 22, 26,30,36, 40 |
m 4.9, 6.7,7.9, 9.1, 11.0,12.2 |
Production
For common sucker rod:
Raw Material Test → Cold Straighten → Cut → Forge → Hot Treatment → Hot Alignment → Shot Blasting → Rod Head Machining → Assembly → Protective Cap → Package → Aczoiling Treatment.
For extra high tensile sucker rod:
Raw Material Test → Cold Straighten → Cut → Forge → Quenched And Tempered → Hot Treatment → Hot Alignment → Shot Blasting → Rod Head Machining → Surface Quenched → Assembly → Protective Cap → Package → Aczoiling Treatment.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
