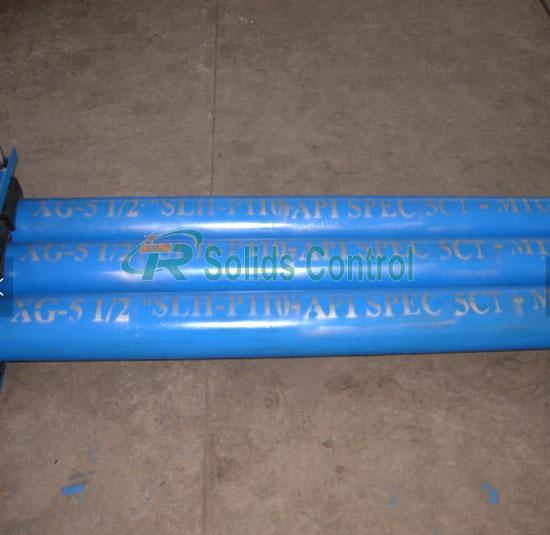

Seamless Oilfield Downhole Fishing Tools Washover Pipe
API 7-1 Oilfield Downhole Fishing Tools Washover Pipe
Product Overview
Washover pipe is a special tool to release the stuck section of drill string in the well bore. ROBUST offers a complete range of washover pipe in the industry. ROBUST unique FJWP thread is a two-step double shoulder thread which assure quick make up and high torsion strength.
Drive sub is a kit tool for washover work, which is used in connecting drill pipe and washover pipe.
Efficient washover shoes are special tools for milling falling objects under wll and repairing top of fish. Our company has various milling shoe with specification from φ73mm toφ273mm. We can also design according to customers requirements.
Technical Specifications of TR Washover Pipe
| TYPE |
O.D mm |
I.D mm |
Min O.D Of using mm |
Diameter of the fish To be Cut mm |
Max.Tensile Load kN |
Max. Working TorqueN•m |
Sealing Pressure MPa |
| TXG114.30-8.56 | 114.30 | 97.18 | 120.65 | 80.90 | 390 | 9490 | 20 |
| TXG127-9.19 | 127.00 | 108.62 | 146.05 | 101.60 | 440 | 12202 | 20 |
| TXG139.70-9.17 | 139.70 | 121.36 | 152.4 | 117.48 | 500 | 14914 | 20 |
| TXG146.05-7.92 | 146.05 | 130.21 | 161.93 | 127.00 | 500 | 14914 | 20 |
| TXG146.05-9.00 | 146.05 | 128.05 | 161.93 | 120.65 | 560 | 16269 | 20 |
| TXG168.28-8.94 | 168.28 | 150.39 | 187.33 | 142.88 | 600 | 21693 | 15 |
| TXG177.80-9.19 | 177.80 | 159.42 | 200.03 | 152.40 | 640 | 24404 | 15 |
| TXG193.68-9.53 | 193.68 | 174.63 | 212.73 | 168.28 | 700 | 31183 | 15 |
| TXG193.68-10.92 | 193.68 | 171.83 | 212.73 | 165.10 | 810 | 36607 | 15 |
| TXG193.68-12.70 | 193.68 | 168.28 | 212.73 | 161.93 | 1060 | 43386 | 15 |
| TXG203.20-9.53 | 203.20 | 184.15 | 215.90 | 177.00 | 820 | 32539 | 15 |
| TXG206.38-9.40 | 206.38 | 187.58 | 215.90 | 177.80 | 830 | 32539 | 15 |
| TXG219.07-11.43 | 219.07 | 196.21 | 244.48 | 187.33 | 1100 | 47453 | 15 |
| TXG219.07-12.70 | 219.07 | 193.67 | 244.48 | 184.15 | 1220 | 54232 | 15 |
| TXG228.60-10.80 | 228.60 | 207.01 | 250.83 | 200.03 | 1260 | 47453 | 15 |
| TXG244.48-11.99 | 244.48 | 220.50 | 266.70 | 212.73 | 1450 | 67791 | 15 |
| TXG244.48-13.84 | 244.48 | 216.80 | 266.70 | 206.37 | 1560 | 81349 | 15 |
| TXG273.05-11.43 | 273.05 | 250.19 | 290.45 | 238.13 | 1620 | 81349 | 15 |
| TXG273.05-12.57 | 273.05 | 247.91 | 298.45 | 234.95 | 1640 | 88128 | 15 |
| TXG298.44-12.42 | 298.44 | 273.60 | 323.85 | 263.53 | 1800 | 108465 | 10 |
| TXG339.72-13.06 | 339.72 | 313.60 | 365.13 | 301.62 | 2020 | 149140 | 10 |
| TXG406.40-16.66 | 406.40 | 373.08 | 444.50 | 355.60 | 2500 | 254894 | 7.0 |
Package Details of Washover Pipe:
- Normal packing: plywood case, wooden box or pallet
- Suitable for ocean shipping and air shipping.
- Max. weight for each package: 1500 Kg
- Standard packing dimension: 1200 * 1100 * 1000 mm
- Custom packing is available.
- Special packing requirements should be known in advance.
