760mm Sheaves 1000m Lifting 890KN Oilfield Traveling Block
Oilfiled Rated Capacity 890 KN Traveling Block Hook
Product Descrption

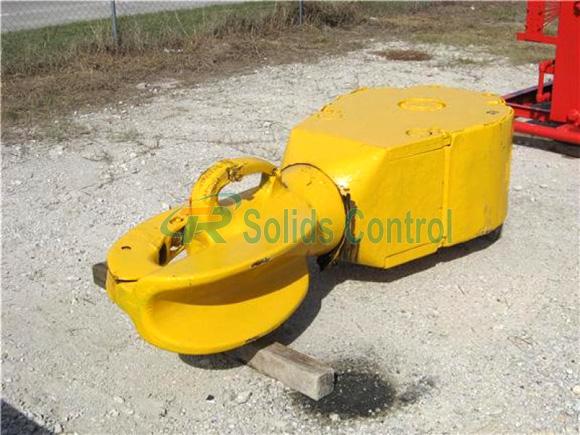

Oilfield hook block is the high-capacity J-shaped equipment used to hang various other equipment, particularly the swivel and kelly, the elevator bails or topdrive units. The hook is attached to the bottom of the traveling block and provides a way to pick up heavy loads with the traveling block. The hook is either locked (the normal condition) or free to rotate, so that it may be mated or decoupled with items positioned around the rig floor, not limited to a single direction.
Hook Block (split type)
Travelling block description and features:
- Design and fabrication as per API 8C.
- Best quality and field proven travelling block.
- Steel sheaves with flame hardened API wireline grooves.
- Tapered roller bearing in sheaves, oil quenched and tempered alloy steel pin with individual grease passages to each center pin bearing.
Design Benefits of Our Oilfield Traveling Hook Block
- Conforms to industry standard SY/T5527.
- The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.
- Series traveling blocks conform to API Spec 8A,and are granted the right to use API monogram.
- Sheave grooves are heat quenched,wear-resistance and a long service life.
- Sheaves and bearings are interchangeable with its matched crown block sheaves and bearings.
Parameters Table of Our Oilfield Traveling Hook Block
| Model | YG100 | YG150 | YG170 | YG250 |
| Rated Capacity(kN) | 890 | 1350 | 1700 | 2550 |
| Sheave qty/Dia(mm) | 3/609.6 | 4/915 | 5/915 | 5/915 |
| Hook style | 3-hook | 3-hook | 3-hook | 3-hook |
| Wire line OD(mm) | 25.4 | 26/29 | 29 | 32 |
| Hook opening dimension(mm) | _ | 165 | 180 | 190 |
| Spring travel(mm) | _ | 180 | 180 | 180 |
| Dimension (mm) | 1685×675×510 | 3195×960×616 | 3307×960×616 | 3450×970×850 |
| Weight (kg) | 1010 | 3590 | 4585 | 4732 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city, China. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: solid control equipment, Petroleum equipment & tools such as drilling equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc.
Our main products:
Drill Equipment, Solid control equipment, Well control system, OCTG, Well head tools, camps, drill bit and spray head, drilling instruments, cementing, oil mining equipment, water well drilling rig and petrochemical products, Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
