Wear Resistant 55kw 2200r/Min Drilling Mud Centrifuge

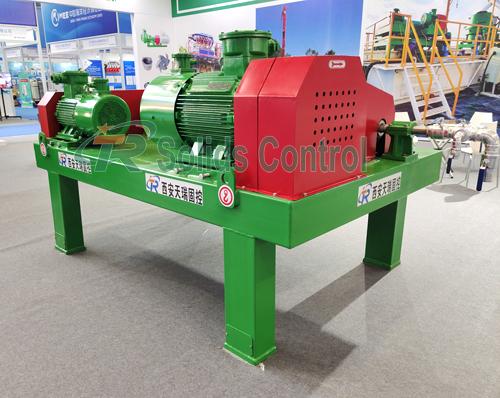

SKF Bearing Oilfield Decanter Centrifuges 815 G-Force
Product Introduction
Decanter centrifuge are used to process unweighted and weighted, water-based and oil-based drilling fluids (muds). Mechanical energy is utilized to increase the gravitational force exerted on solids that are present in the mud system.oilfield Decanting Centrifuge are able to apply over 3,000 G-forces on the liquid/solids mixture, which separates the heavier solids from the lighter solids. Additionally, high G-forces separate fine solids from liquid.
Precision and quality of parts manufacturing directly affect centrifuge’s solid phase separation effect and service life. Bowl is made of a cylindrical cylinder and a conical cylinder. Cylindrical cylinder for solid phase subsidence area, meanwhile conical cylinder for dehydration area. There are eight overflow openings in the big end plate of the bowl. And adjustable overflow plate on overflow hole, which adjusts depth of the liquid level inside cylinder by changing the different positions of the baffle, so as to realize different separation effect.
Design Advantages of TRLW Series Decanter Centrifuge
- Drum assembly is protected with demountable support frame in transit, preventing damage to bearing.
- Straight and cone section of the drum are made from 2205 duplex stainless steel material, adopt centrifugal casting process.
- Schneider or Siemens electrical components. Current overload & mechanical limit switch dual protections.
- Screw carrier adopts YG6 wear-resistant alloy sheet protection. With long life, easy maintenance and replacement.
- Using imported SKF and NSK bearings to improve equipment stability and bearing life.
- Remaining components of the drum assembly are made from SS316L.
- Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
- Frequency control facilitates customers to adjust speed at any time, meeting different working conditions.
Technical Information Data of Decanting Centrifuge
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user's requirements)
TR Solids Control is a lead and professional manufacturer of decanter centrifuge. TR decanter centrifuge is high in recovery rate, effective in solids control and remarkable in the reduction of cost spent on drilling mud resupplying and management. Below is the main technical data of our decanter centrifuge.
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
