Oilfield Kelly Drilling Rotary Hose Size 6 Inch 35Mpa

Product Descrption

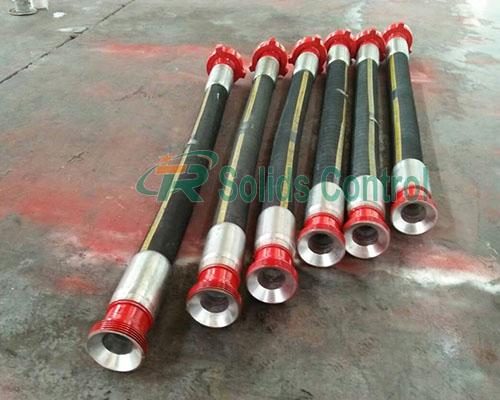

Rotary drilling hose is mainly used for conveying water-based or oil-based mud and other fluids in the working temperature of -30 °C to +82 °C. It is often used for oil fields, cement repairing, geological exploration and water conveyance for coal excavation. It is composed of three parts: tube, reinforcement and cover. The tube is made from NBR, which is resistant to abrasion, corrosion and oils. The reinforcement is made from 2-8 layers of high tensile and high strength spiraled steel wire, making the hose have solid structure and resistant to high pressure. The cover is made from high quality synthetic rubber, mainly chloroprene rubber, making the hose resistant to abrasion, corrosion, cut, weather, ozone, aging and sunlight. The hose has longer service life as a result.

Product Specifications

• Tube: NBR, specially compounded for handling abrasive, corrosive and oil-based drilling mud
• Reinforcement: Multiple layers of polyester cord over tube, high tensile steel cables.
• Cover: NBR, Specially compounded, resistant to abrasion, corrosion, cutting, gouging, oil and weather.
• Coupling Fitting: Hammer Unions, API Male End, Flanges
• Standard: API Spec 7k

Product Details

Tube: high quality synthetic rubber, mainly NBR, which is resistant to abrasion, corrosion and oils.
Reinforcement: 2-8 layers of high tensile and high strength spiraled steel wire, making the hose work well in high pressure working conditions.
Cover: high quality synthetic rubber, mainly chloroprene rubber, making the hose resistant to abrasion, corrosion, cut, weather, ozone, aging and sunlight.
Working temperature: -30 °C to +82 °C.
Note: rotary drilling hose can be divided into five kinds according to the working pressure: grade A, grade B, grade C, grade D and grade E.

Technical Specifications of Drilling Rotary Hose

Application of Rotary Drilling Hose

• It is mainly used for conveying water-based or oil-based mud and other fluids.
• It is often used for oil fields, cement repairing, geological exploration and water conveyance for coal excavation.
• General info of our rotary hose.

Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of all types of petroleum equipment. The company is located in Xi'an city of China. And we have many years of history in the petroleum equipment industry. Our main products include drilling equipment, solid control equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and oilfield tools.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
