ZQ203/100 16Mpa Hydraulic Drill Pipe Tongs For Oilfield

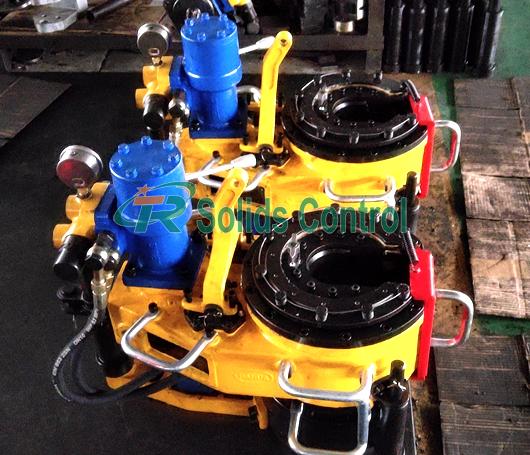

ZQ203/100 Hydraulic Power Tong for Oilfield Drilling
Product Descrption
Hydraulic power tong are designed and manufactured according to API Spe 7K"specification for drilling equipment". It is a combination of spinning tong and torque tong. It substitutes cathead, suspension tong and spinning rope in making-up and breaking out.
We operate various businesses with self-confidence and unity business philosophy, and are determined to provide customers with the highest quality cementing manifold, High Pressure Drilling Fluids Manifolds, TCI tricone rock bit and services. We will uphold the pragmatic style of 'constantly push ourselves and pursue excellence', always firming up our service commitments to customers, thus achieving sustainable development of the company. We continue to innovate technology around enhancing customer value. We adhere to the honest, efficient, practical win-win running mission and people-oriented business philosophy. In today's increasingly progressive technology, our company constantly increases the investment in research and development technology, speeds up the pace of research and development system construction.
Product Benefits of Oilfield Hydraulic Power Tong
- Our power tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.
- Drill pipe power tong is a ideal well head tool for oil drilling apparatus,
- Widely applied in making-up and breading-out in drilling well and repairing well on offshore and land, open-throat design of the XQ series allows the tongs to escaping from drilling pipe freely with high mobility.
- The tong is a combination of spinning tong and torque tong. It substitutes cathead manual tong and spinning rope in making-up and breaking-out.
Technical Sheet of Oilfield Hydraulic Power Tong
| Model | ZQ203-125 | ZQ203-100 | ZQ203-100A | ZQ203-100B | ZQ162-50 | ZQ127-25 | |
| Size rang |
mm | 127-203 | 121-203 | 121-203 | 121-203 | 85-162 | 65-127 |
| in | 31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
23/8 coupling -5body |
23/8 coupling-31/2body |
|
| Max.torque | kN.M | 125 | 100 | 100 | 100 | 50 | 25 |
| ft.lbf | 92200 | 73750 | 73750 | 73750 | 36880 | 18440 | |
| Speed of tong Hi. | rpm | 40 | 40 | 40 | 40 | 60 | 65 |
| Speed of tong To. | rpm | 2.7 | 2.7 | 2.7 | 2.7 | 4.1 | 10.5 |
| Hydraulic system pressure ratigin | Mpa | 20 | 16.6 | 16.6 | 16.6 | 16 | 12 |
| Psi | 2900 | 2400 | 2400 | 2400 | 2320 | 1740 | |
| Hydraulic system pressure ratigin | L/min | 114 | 114 | 114 | 114 | 120 | 180 |
| gpm | 30 | 30 | 30 | 30 | 32 | 48 | |
| Stoke of shifting cylinder | mm | 1500 | 1500 | 1500 | / | 1000 | 1000 |
| in | 59 | 59 | 59 | / | 39.4 | 39.4 | |
| Moving distance of tong | mm | / | / | / | 0-3000 | / | / |
| in | 0-59 | ||||||
| Lifting diatance of tong | mm | / | / | 0-485 | 0-1800 | / | / |
| in | 0-19 | 0-31.5 | |||||
| Overall dimensions | mm | 1720 *1050 *1750 |
1700 *1000 *1400 |
1700* 1000 *1400 |
1750* 1650 *2050 |
1570* 800 *1190 |
1110* 790 *820 |
| in | 68* 41*69 |
67* 39*55 |
67* 39*55 |
69* 65*81 |
62* 31*47 |
44* 31*32 |
|
| Weight | Kg | 2600 | 2400 | 2500 | 3250 | 1500 | 620 |
