Oilfield Single Valve Cement Head Drill Spare Parts AISI 4145H API 5CT
API 5CT Oilfield Drilling Tool Single Valve Cement Head
Product Descrption

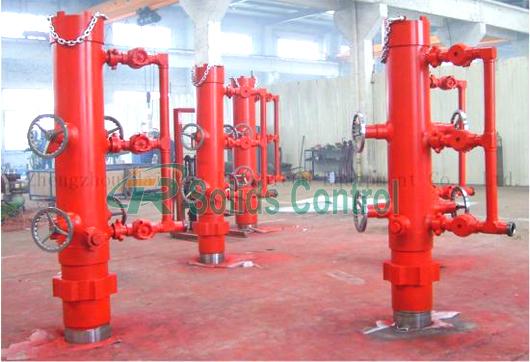

Cementing Head is designed to hold a cementing plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement Head after the spacer fluid. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line. We could supply both type of Cementing Head, Single Plug or Double Plug and available sizes are 4 ½" to 13 3/8".
Double plugs cementing head is special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously,and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.
Product Benefits of Oilfield Cement Head
- Double balance pipe is developed.
- Positive lever indicates plug releasing.
- Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
- It is manufactured utilizing API grade steels with API 8 round, buttress and premium threads.
- Main parts are made from AISI4145H alloy steel.
- Top cover and union nut with large trapezoidial-threaded.
- It makes the tool convenient to disassemble and carry.
Technical Data Sheet of Double Plug Cement Head
| Specifications (in) | 5 1/2" | 7" | 7 5/8" | 9 5/8" | 10 3/4" | 13 3/8" |
| Overall Length (mm) | 1950 | 2020 | 2360 | 2360 | 2440 | 1780 |
| Manifold | 2" 1502 Union | |||||
| ID of Plug Container (mm) | Φ125 | Φ175 | Φ225 | Φ250 | Φ320 | ø 320 |
| Length of Plug Container (mm) | 400 | 450 | 550 | 550 | 600 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35 | 21 |
Technical Data Sheet of Single Plug Cement Head
| Specifications (in) | 5 1/2" | 6 5/8" | 7" | 7 5/8" | 9 5/8" | 10 3/4" | 13 3/8" |
| Overall Length (mm) | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
| Manifold | 2" Union | ||||||
| ID of Plug Container (mm) | ø125 | ø 150 | ø 160 | ø 175 | ø 225 | ø 250 | ø 320 |
| Length of Plug Container(mm) | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35.50 | 35 | 35 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.
Our products are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia , African, Australia,Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
