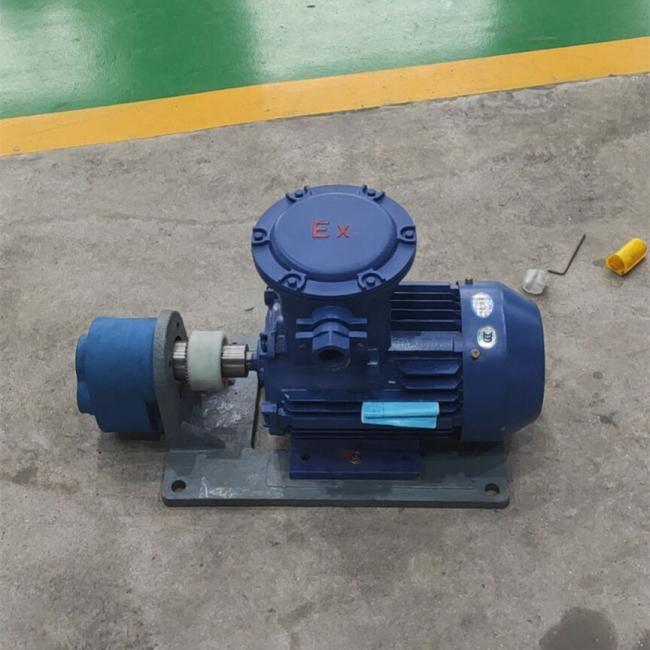

100L/Min Drill Spare Parts Horizontal Gear Oil Pump For Oil Lubrication System
100L/Min Drill Spare Parts Horizontal Gear Oil Pump For Oil Lubrication System
1. Overview
This product is suitable for oil lubrication system or hydraulic transmission system, seat conveying lubricating oil or oil pump as the power source of hydraulic system. It can also be used to discharge non corrosive lubricating liquid medium. Industrial lubricating oil or hydraulic oil with viscosity grade of N22 ~ N460 (equivalent to ISO VG22 ~ VG460).
2. Technical Parameters
| Model |
Nominal pressure Mpa |
Model |
Nominal flow L/min |
Suction height mm |
Model |
Power kN |
Speed r/min |
Weight kg |
| WBZ2-16 |
0.63 |
CB3-B16 | 16 |
500 |
Y90S-4-B3 | 1.1 | 1400 | 55 |
| WBZ2-25 | CB3-B25 | 25 | 56 | |||||
| WBZ2-40 | CB3-B40 | 40 | Y100L1-4-B3 | 2.2 | 1420 | 80 | ||
| WBZ2-63 | CB3-B63 | 63 | 100 | |||||
| WBZ2-100 | CB3-B100 | 100 | Y112M-4-B3 | 4 | 1440 | 118 | ||
| WBZ2-125 | CB3-B125 | 125 | 146 |

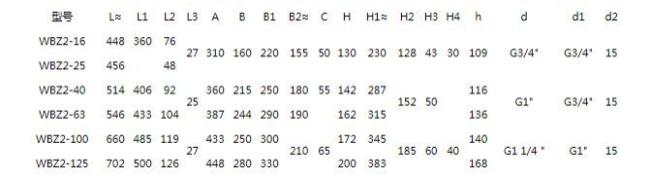

3. Dimensions
4. Model Description
WBZ 2 - **
WBZ:Horizontal Gear Oil Pump
2: Design Sequence Number
**: Nominal flow value(L/min)
