162-1022-004 Eaton Char Lynn Hydraulic Motor Power Steering Replacement 375ml/R

Price Negotiable

Price: Contact the seller to get a quote

MOQ: 100 Pieces

Delivery Time: 55 work days

Brand: HANJIU

Product Description

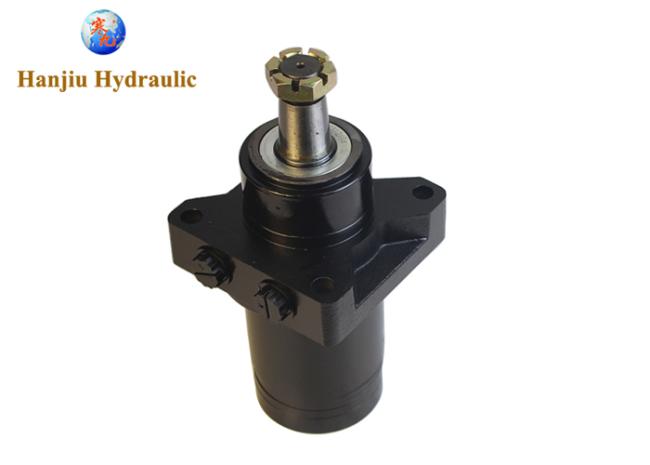

162-1022-004 Eaton Char-lynn hydraulic motor power steering replacement

Quick review:

162-1022-004 Eaton Char-lynn hydraulic motor power steering replacement

W series,	162-1022-004, M0W23B03AC00000D
Rotation	Port A Pressurized — CW
0W –	W Series
23 –	374 ml [22.8]
B –	4 Bolt (Wheel) 82,6 [3.25] Pilot Dia. and 13,59 [.535] Dia. Mounting Holes 147,6 [5.81], Dia., B.C., 127,0 127,0 [5.00] rear pilot
03 –	1 1/4 inch Dia. .125:1 Tapered Shaft Per SAE J501 with 1– 20 UNEF -2A Threaded Shaft End and Slotted Hex Nut, 7,938 [.3125] Square x 22,22 [.875] Straight Key
A –	7/8 -14 UNF - 2B SAE O-Ring Port
C –	Internal Check Valve
00 –	None
0 –	None
0 –	No Paint, Individual Box
0 –	Assigned Code
D –	Assigned Design Code

More Eaton Charlynn Hydraulic Motor equivalent available:

J	(129-)
H	(101-)
S	(103-)
T	(158-)
W	(162-)
2000	(104-, 105-, 106-, 193-)
4000	(109-, 110-, 111-)
6000	(112-, 113-, 114-)
10000	( 119-)

About Hanjiu:

A manufacturing brand from China, specializing in low-speed high-torque motors, customer base includes wholesalers, importers, OEMs, they replace Danfoss, White, Eaton, Dana Brevini with Hanjiu low-speed high-torque motors. Hanjiu motors are not expensive, but high quality and fast delivery. We introduce Hanjiu as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion. If you are a hydraulic importers, contact us to talk work together.
