Epiroc Hydraulic Orbit Motor 3217953500 OMM32 Side Ports With Key Shaft
Price:
Negotiable
MOQ:
50 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description

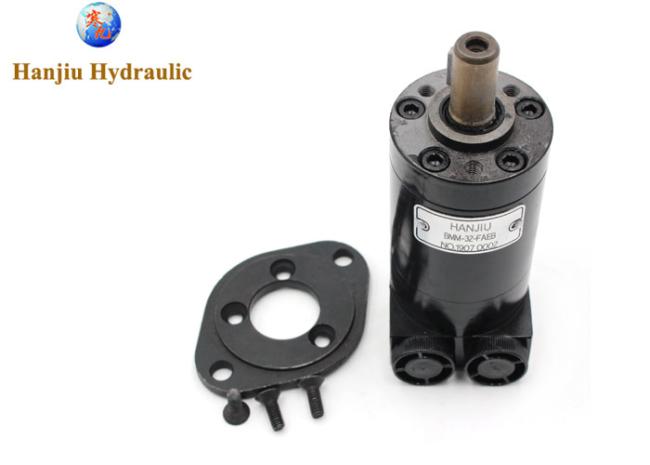

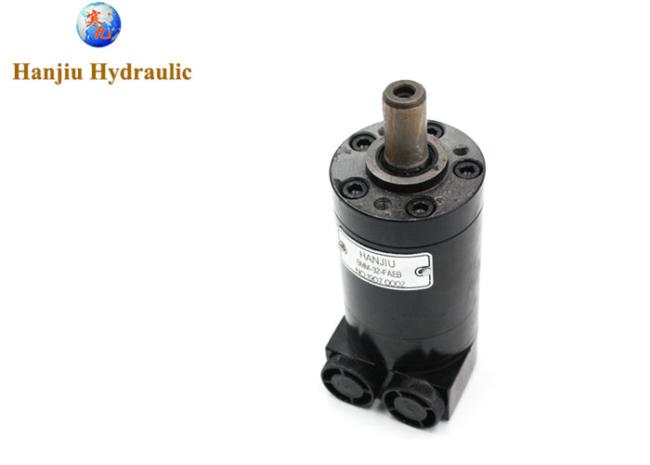

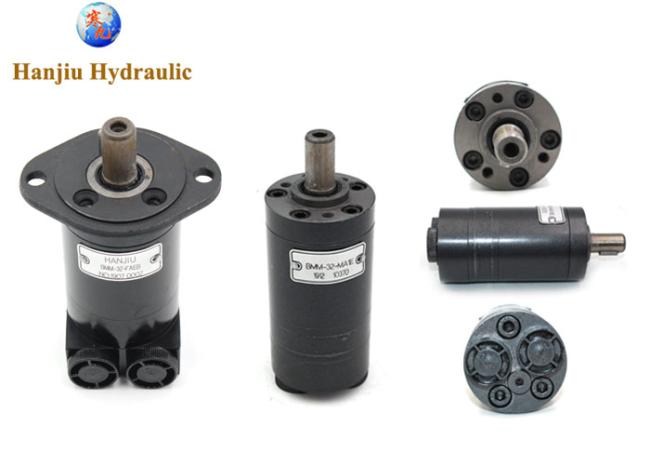

Epiroc hydraulic motor 3217953500 OMM32 hydraulic orbit motor ,
side ports with key shaft
Product Details:
Brand:Hanjiu
type:OMM32/BMM32
shaft:key shaft
ports:side ports
OEM NO.3217953500
using in Epiroc Boltec Lc , Boomer 281 , Boomer K111 , Simba H1257
Main Specifications:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
Other types we supply
3115347380
3115347381
3115347383
3115347385
3222327221
5727000417
9106165202
