BMK10 Low Speed High Toque Hydraulic Motor Eaton 119-1103-003 Spline Shaft
Price:
350
MOQ:
100 Sets
Delivery Time:
35 - 45 work days
Brand:
HANJIU
Product Description

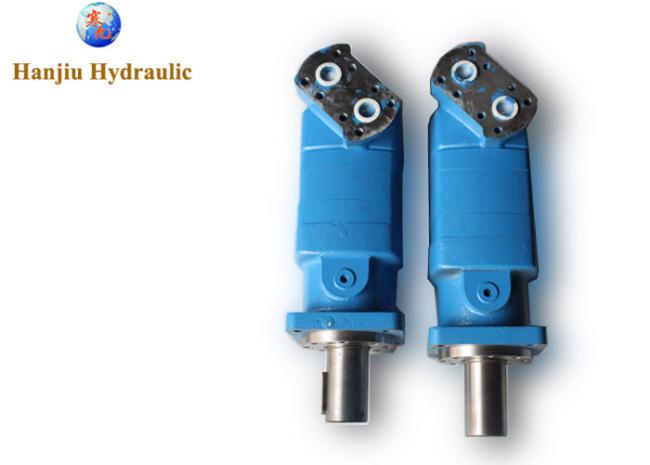

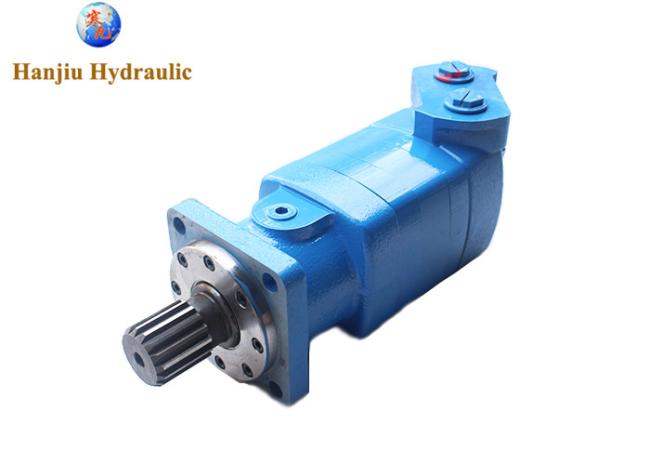

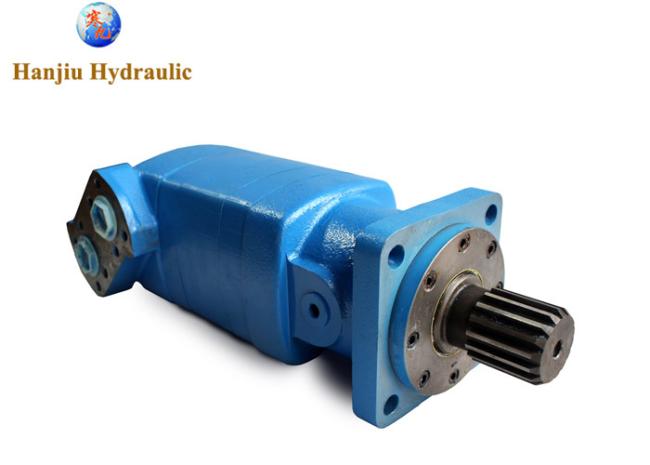

LOW SPEED HIGH TOQUE HYDRAULIC MOTOR EATON 119-1103-003 SPLINE SHAFT,
SIDE PORTS MOTOR
HANJIU BMK10 series hydraulic disc valve motors equivalent of charlynn 10000 series motor
the same flange, same shaft size and same port threads
used on HARVESTER CANE DRIVE MACHINES
SPECIFICATIONS
| Series | 10000 - Standard type |
| Displacement | 665cm³/r |
| Mounting Type | STANDARD, 4 BOLT; 127.0 mm PILOT DIA |
| Shaft Type | 53.98 [2.125] DIA. FLAT ROOT |
| Maximum Operating Temperature | 180 °F |
| Output Shaft Size | Spline shaft |
| Overall Height | 5.79 in |
| Overall Length | 17.74 in |
| Overall Width | 5.91 in |
| Seal Type | Standard |
| Operation Mode | Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute |
| Drain Connection Size |
1 1/4 inch Split Flange
|
PARAMETERS
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed* | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque* | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar** | bar | 205 | 205 | 205 | 190 |
Eaton similar type motors are available we belows:

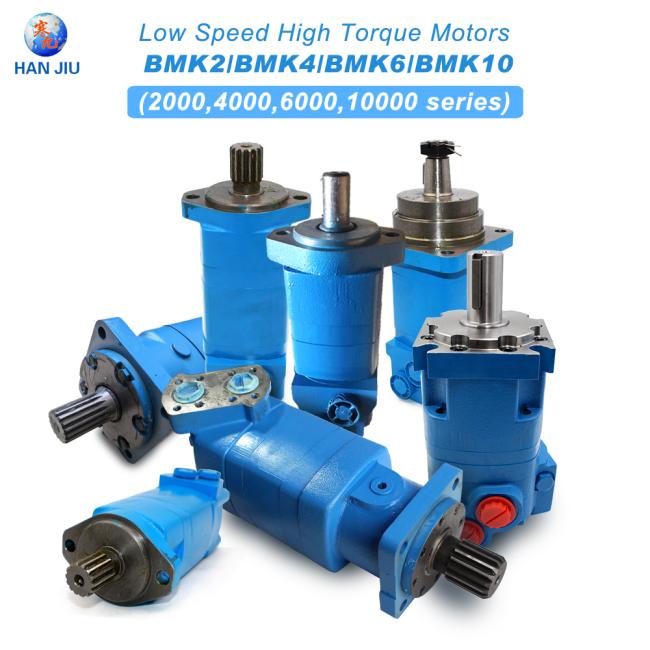

- J (129-) HANJIU BMM
- H (101-) HANJIU BMPH
- S (103-) HANJIU BMRS
- T (158-) HANJIU BMRS
- W (162-) HAJJIU BMRW
- 2000 (104-, 105-, 106-, 193-) HANJIU BMK2
- 4000 (109-, 110-, 111-) HANJIU BMK4
- 6000 (112-, 113-, 114-) HANJIU BMK6
- 10000 (119-) HANJIU BMK10
HANJIU TECHNOLOGY sells all kinds of high-torque hydraulic motors. when you meet any problems during use, you can always contact HANJIU, our expert will give you help
