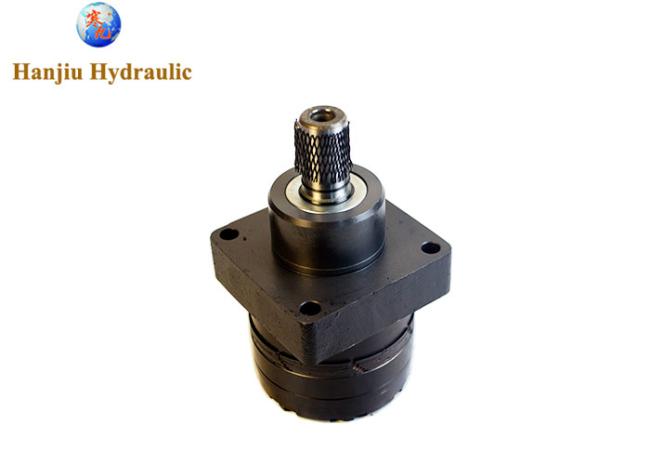

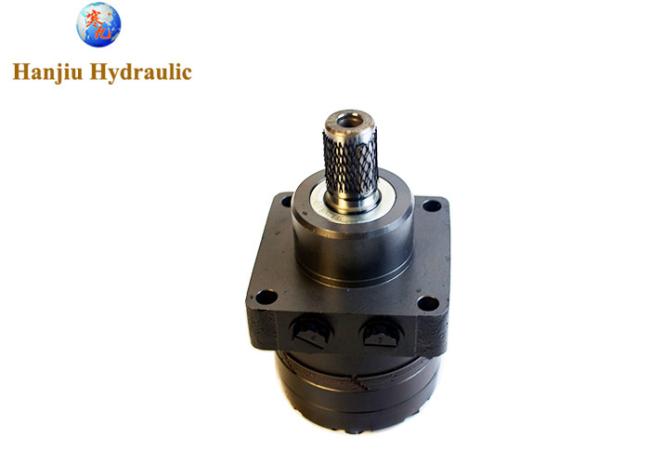

BMER-2 TG Series Wheel Hydraulic Motors For Hydraulic Bucket Brush Combi Sweeper
high torque motor TG series wheel motors for hydraulic bucket brush combi sweeper
Quick review:
This is Parker compatible motor with same form, fit and function
Apply to hydraulic bucket brush combi sweeper
Here is main specifications:
| Series: | Parker TG Motor |
| Shaft: | 31.75mm key shaft |
| Rotation: |
Standard rotation |
| Displacement (cm3/rev): | 0240 |
| Mounting: | Wheel mounting |
| Geometric Displacement: | 240cm3/rev (214.5in3/rev) |
| Maximum Oil Flow (continuous / intermittent): | 75 lpm (20 gpm) / 90 lpm (24 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 205 bar (3000 PSI) / 240 bar (3500 PSI) |
| Maximum Supply Pressure: | 276 bar (4000 PSI) |
| Maximum Torque - Continuous / Intermittent: | 990 Nm (8900lb-in) / 1140Nm (10250 lb-in) |
| Maximum Output(continuous / intermittent) | 16.5 KW /19kw |
Main Specifications:
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
|
|
Geometric displacement (cm3 /rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
|
About Hanjiu:
Hanjiu Technology Co., Ltd. manufactures low-speed and high-torque hydraulic orbital motors. Importers, distributors and users use it's low-speed and high-torque hydraulic orbital motors as an affordable alternative to Torqmotor Parker (also known as Torqmotor Ross). The market feedback is positive. good. At present, the company have cooperated with Parker torqmotor dealers ( Ross Torqmotor dealers) and users from the United States, Canada, Australia, South Africa, UAE, Germany, Turkey, Mexico, Brazil, Chile and more regions, and provided them with numerous of professional hydraulic orbital motors, Significantly save costs while greatly increasing profit margins.
At present, the low-speed and high-torque hydraulic orbital motor that we have independently developed can be used interchangeably with the following models of torqmotor parker in form, fit, and function:
torqmotor parker tg series
torqmotor parker tf series
torqmotor parker te series
torqmotor parker tb series
torqmotor parker th series
torqmotor parker tj series
