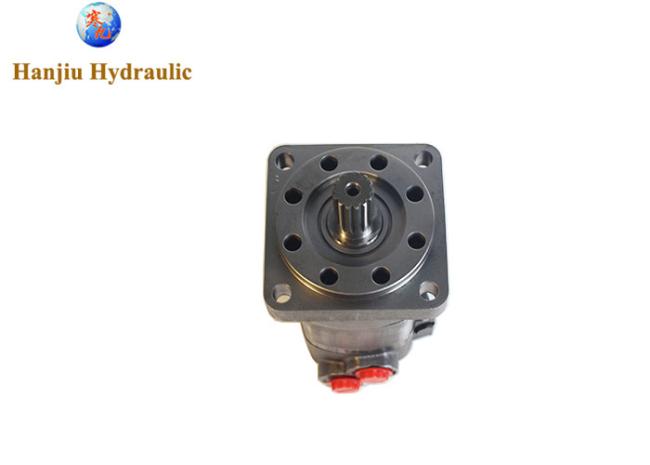

Eaton Char Lynn 4000 Series Disc Geroler Motor 109-1203-006 For Snow Removal
EATON CHAR-LYNN 4000 SERIES DISC GEROLER MOTOR 109-1203-006 for Snow Removal
Hanjiu technology supply the replacement charlynn motor BMK4 series motor
Product details:
| MOUNTING TYPE | Standard mounting |
| PORT CODE | AB |
| PORT TYPE | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| drain | 0.4375-20 UNF-2B SAE O-Ring Port With Check Valve |
| DISPLACEMEN (IN3/REV) | 205.5 CM3/R [12.54 IN3/R] |
| SPLINES | 14 teeth |
| SHAFT SIZE & TYPE | 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 459 rpm @ 25 gal/min |
| FLOW RATE | 24 gal/min |
| PAINT/PACKAGING | Individual Box |
| Application: | Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products |
Hanjiu technology supply series types of hydraulic orbit motors, each type apply for different areas
Applications of Hydraulic Motors:
Hydraulic motors are used in a wide range of applications, from heavy machinery to small equipment. Some of the common applications of hydraulic motors include:
- Construction machinery: Hydraulic motors are used in excavators, backhoes, and bulldozers to power their movements.
- Industrial machinery: Hydraulic motors are used in conveyor belts, pumps, and compressors to drive their operations.
- Marine equipment: Hydraulic motors are used in ships and boats to power their propulsion systems.
- Agricultural machinery: Hydraulic motors are used in tractors, harvesters, and sprayers to drive their operations.
Conclusion:
Hydraulic motors are an essential component of hydraulic systems, which convert fluid power into mechanical power. The working of hydraulic motors is based on the principle of fluid power, which creates pressure to drive the rotating shaft. The two types of hydraulic motors are gear motors and vane motors, which work on different principles. Hydraulic motors find applications in a wide range of industries, from construction to agriculture, making them a vital component of modern machinery.
