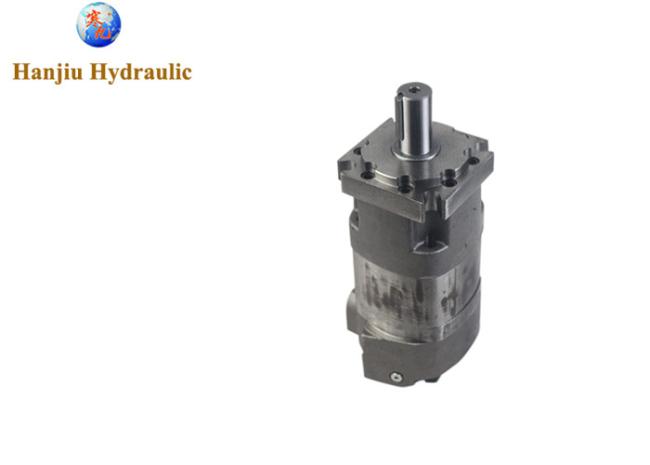

Hyd Motor Oem Ref 109-1212-006 30.0 In3 Displacement 4 Bolt Sae B Mount 1-1/4" Keyed Shaft #12 Sae Oring Ports
Hyd Motor OEM Ref. 109-1212-006 30.0 IN3 DISPLACEMENT, 4 BOLT SAE B MOUNT, 1-1/4" KEYED SHAFT, #12 SAE ORING PORT
Hanjiu technology supply the replacement charlynn motor BMK4 series motor
| Mfr. Number | Cubic Inch Disp. | Shaft | Keyway | Max GPM | Max RPM | Max PSI | Torque (lb-in) at Max PSI | Rotation |
| 109-1212 | 30 | 1-1/4" | 5/16" | 25 | 191 | 2000 | 8375 | Dual |
Product details:
- Disc Motor
- Geroler
- Disc Valve
- 7/8-14 SAE O-Ring Port
- 30.06 Cubic Inch Displacement Per Rev
DESCRIPTION
- HANJIU product line motor can deliver more than 40 hp in a small package. The disc valve design has the highest performance available.
FEATURES
- Highly efficient Geroler® element provides energy savings
- Widest range of available options on the market promotes maximum flexibility to fit into many applications
- Disc valve design delivers the lowest pressure drop in the industry
- Additional configurations available
- please contact your local Applied® service center for more information
OPTIONS
- Five shaft configurations
- Four mounting styles
BMK4 OEM NUMBER
|
109-1100-006
|
109-1001-AFT
|
|
109-1101-006
|
109-1002-006
|
|
109-1102-006
|
109-1181-AFT
|
|
109-1106-006
|
109-1003-006
|
|
109-1114-006
|
109-1012-006
|
|
109-1116-006
|
109-1100-006
|
|
109-1117-006
|
109-1120-AFT
|
|
109-1118-006
|
109-1154-006
|
|
109-1119-006
|
109-1156-006
|
|
109-1120-006
|
109-1157-006
|
|
109-1212-006
|
109-1185-006
|
|
109-1225-006
|
109-1185-AFT
|
|
109-1492-006
|
109-1189-AFT
|
|
109-1516-006
|
109-1192-AFT
|
|
109-1195-AFT
|
109-1227-006
|
From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
